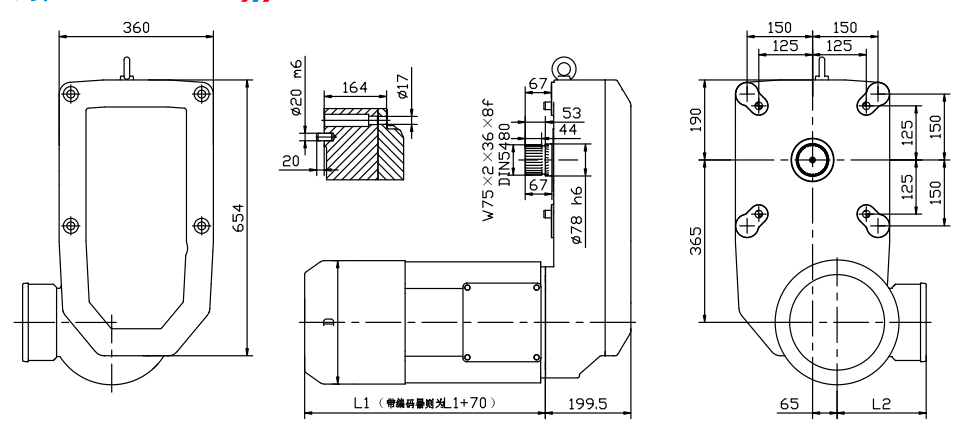

JHD200 Wire Rope Hoist 5-20T VFD Ø295mm

JHD200 Wire Rope Hoist 5-20T VFD Ø295mm – Heavy-Duty Variable Frequency Lifting Solution

The JHD200 Wire Rope Hoist 5-20T VFD delivers exceptional heavy-duty lifting performance with variable frequency drive technology for industrial applications requiring substantial capacity and precise speed control. This wire rope hoist combines CATET’s proven hoisting engineering with VFD motor control and Ø295mm drum configuration to provide comprehensive lifting solutions across the 5-20 ton capacity range with variable speed capability.

Technical Specifications and Performance Features

The hoisting system provides 5-20 ton lifting capacity with VFD control compatibility for enhanced operational flexibility in heavy-duty applications. This JHD200 system features robust construction with Ø295mm drum diameter, providing optimal lifting efficiency for heavy load requirements while accommodating variable frequency drive motor systems for precise speed applications.

The VFD operation enables infinitely variable speed control, providing operational flexibility for applications requiring precise heavy load positioning and speed adjustment across the full capacity range. The Ø295mm drum design ensures optimized rope capacity and lifting performance for demanding industrial applications.

Mechanical Design Features

The wire rope hoist utilizes heavy-duty components engineered for VFD operation:

• High-strength alloy steel gear components for maximum durability
• Ø295mm drum diameter for heavy-duty rope capacity
• Precision ball bearings designed for heavy load applications
• Aluminum housing providing excellent heat dissipation under load
• Electromagnetic brake system for immediate load holding
• IP55 protection class suitable for industrial environments

The mechanical components are designed to provide reliable heavy-duty hoisting performance with integrated VFD control functionality across variable speed ranges.

Operational Features

When configured for VFD operation, the hoisting system accepts:

• Standard variable frequency drive control signals
• VFD inputs for speed regulation under heavy loads
• Speed control commands from external systems

The hoist maintains consistent mechanical performance across the variable speed range, ensuring smooth lifting operations with precise control capabilities for heavy-duty applications.

Safety and Protection Systems

Standard safety features include:

• Electromagnetic brake for immediate heavy load holding
• IP55 environmental protection rating
• Thermal protection (when motor thermal protection is provided)
• Integration capability with emergency stop systems
• Enhanced overload protection for heavy-duty operation

Installation and System Integration

The hoisting system offers flexible installation options for heavy-duty applications:

• Multiple mounting orientations available
• Heavy-duty crane beam integration
• Compatible with existing heavy-duty crane structures
• Standard control interface connections

VFD Control Requirements

For VFD operation, the system requires:

• Compatible VFD-controlled motor rated for heavy-duty operation
• Appropriate variable frequency drive system for heavy loads
• Proper electrical connections per specifications

Technical Performance Data

Standard Specifications:

• Model: JHD200
• Capacity range: 5-20 tons
• Drum diameter: Ø295mm
• Motor type: VFD compatible
• Voltage: 380V (standard)
• Frequency: Variable (VFD controlled)
• Duty classification: M5/FEM
• Protection class: IP55
• Brake: Electromagnetic brake system

VFD Performance:

• Speed range: Variable (VFD dependent)
• Control: Via external VFD system
• Operation: Infinitely variable speed control for heavy loads

Quality Manufacturing Standards

The hoist follows CATET’s established manufacturing protocols:

• Precision manufacturing and assembly processes
• Enhanced quality control testing for heavy-duty applications
• Wire rope and drum inspection protocols
• Standard product warranty coverage
• Complete technical documentation provided

Application Suitability

The wire rope hoist serves various heavy-duty industrial applications:

• Heavy manufacturing facilities requiring variable speed lifting
• Steel mills and heavy industry operations
• Construction sites demanding precise heavy load positioning
• Port and container handling operations
• Shipbuilding and large assembly operations
• Mining and heavy equipment operations

Technical Support and Configuration

For proper system operation:

• Compatible VFD motor must be specified for heavy-duty applications
• Appropriate VFD system required for heavy load speed control
• Professional installation recommended
• System integration consultation available

Maintenance Requirements

The hoisting system requires:

• Regular mechanical maintenance per CATET specifications
• Wire rope inspection and replacement schedules for heavy loads
• VFD system maintenance per manufacturer requirements
• Periodic brake system inspection and adjustment for heavy-duty operation
• Enhanced drum and rope system inspection

---

Contact CATET technical support for specific configurations, VFD compatibility requirements, and system integration support for your heavy-duty industrial lifting applications.
