The MC Series Industrial Gearbox, available as MC.H (Parallel Shaft) and MC.B (Right Angle), delivers high-power transmission from 7.05 to 1066kW with ratios of 7.1:1 to 112:1. Featuring a rigid cast iron housing and hardened helical or bevel gears, it ensures high load capacity and durability. With modular accessories and versatile mounting, DONGQI’s MC Series is ideal for heavy-duty industrial applications.

Applications of MC Series Industrial Gearbox

The MC Series excels in demanding industrial environments, including:

• Crushing and Mixing – High torque for material processing in mining and cement.
• Bulk Material Handling – Reliable power for conveyors and lifting systems.
• Chemical and Food Processing – Consistent performance for mixing and agitation.
• Wood, Paper, and Environmental Protection – Durable operation for processing equipment.

This gearbox is perfect for high-load, heavy-duty tasks across multiple industries.

Advantages of MC Series Industrial Gearbox

Key benefits include:

• High Power Capacity – Supports 7.05-1066kW for robust performance.
• Wide Ratio Range – 7.1:1 to 112:1 for precise torque control.
• High Load Capacity – Rigid cast iron box withstands heavy-duty conditions.
• Compact and Lightweight – Optimized design for space-constrained setups.
• Modular Design – Flexible accessories and configurations for diverse needs.
• Low Noise – Hardened gears ensure smooth, quiet operation.
• Versatile Mounting – Six-side mounting for installation flexibility.

Technical Parameters of MC Series Industrial Gearbox

Parameter	Specification
Input Power	7.05 kW – 1066 kW
Output Speed	15.5 – 267.1 rpm
Output Torque	8000 N.m – 66000 N.m
Transmission Ratio	7.1 – 112
Transmission Stage	2-3 Stage

Model Sizes: MC02 ~ MC09

Main Components

Housing

• Material: Cast iron for superior strength and durability.
• Design: Rigid welded box structure for high load capacity.

Gears

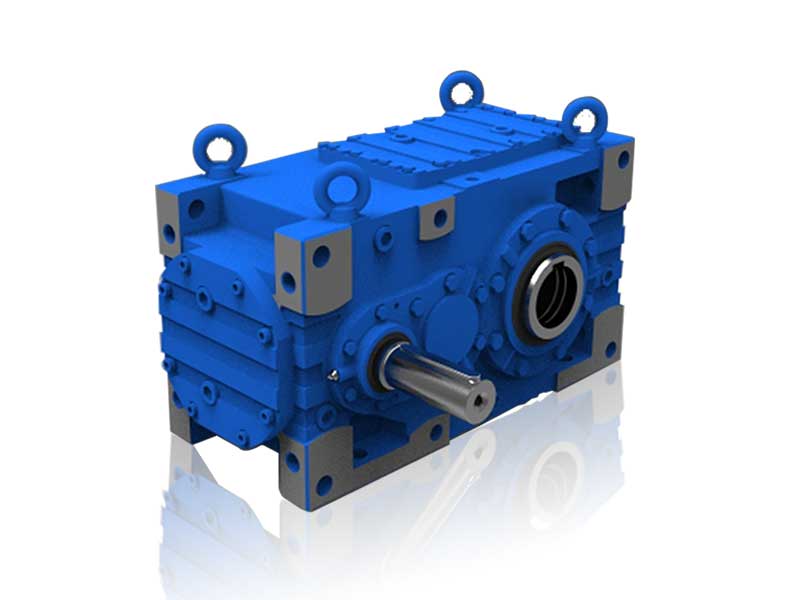

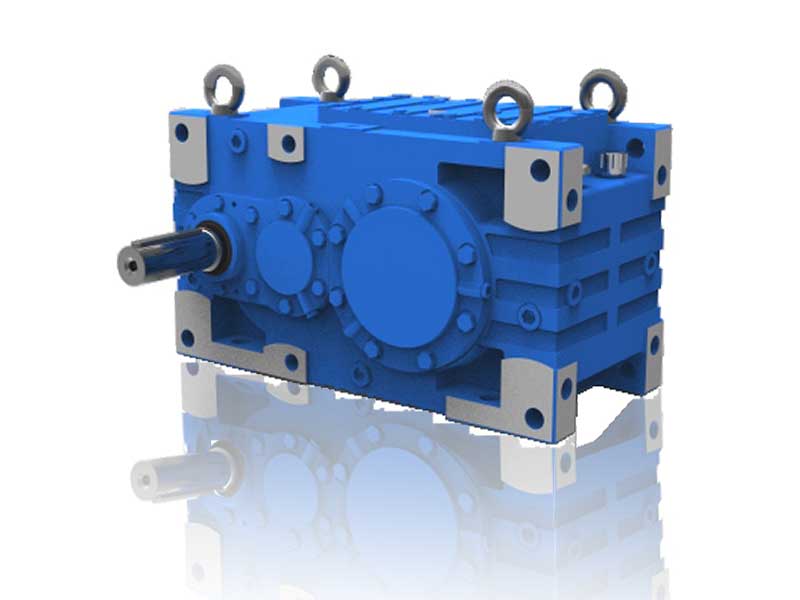

• MC.H Series: Hardened helical gears for parallel shaft efficiency.

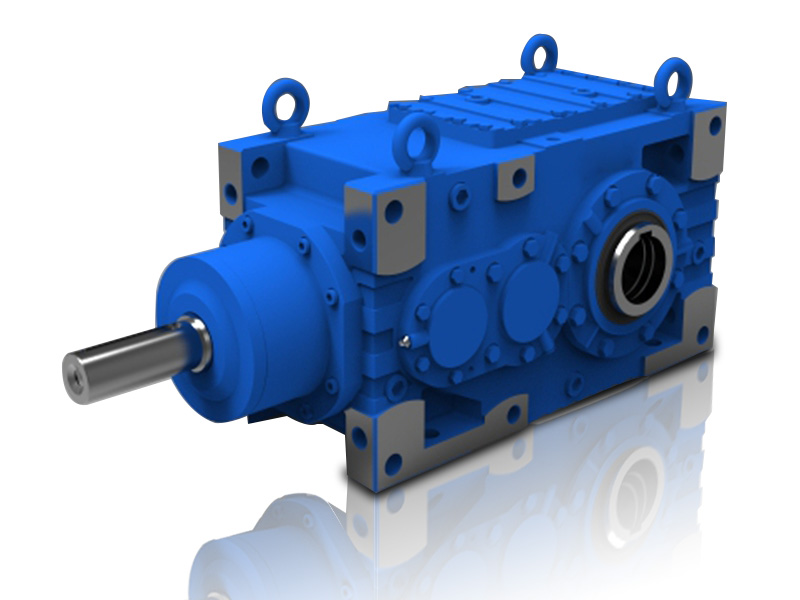

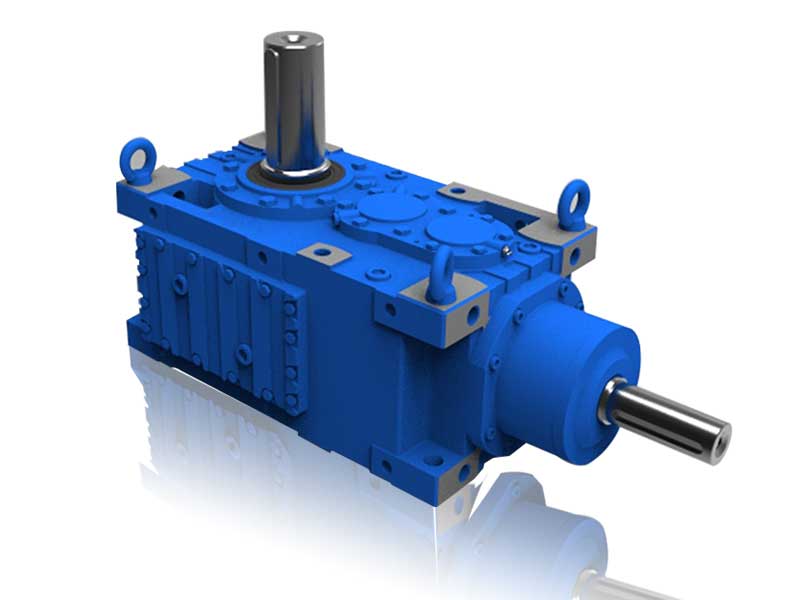

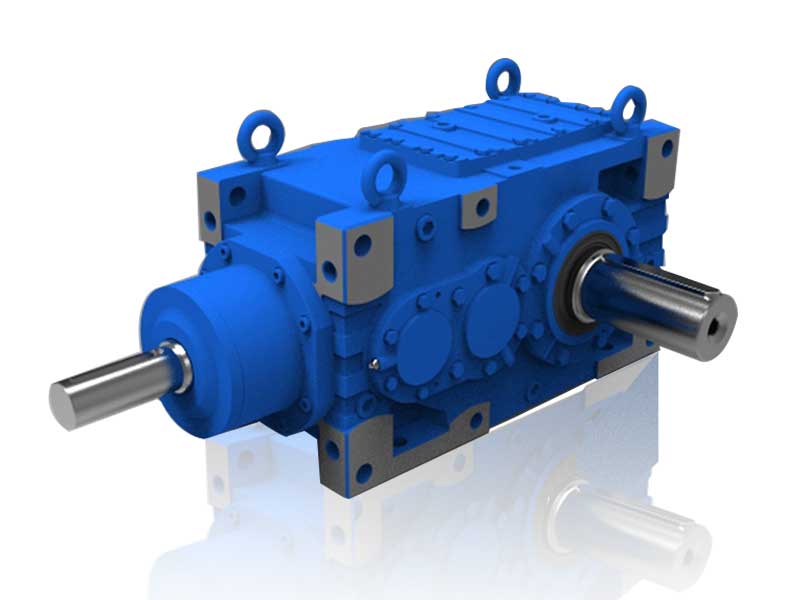

• MC.B Series: Hardened helical bevel gears for right-angle transmission.
• Feature: Precision-engineered for high performance and low noise.

Shafts

• MC.H Series: Parallel shafts for efficient power transfer.
• MC.B Series: Orthogonal shafts for right-angle applications.
• Output: Solid shaft or hollow shaft for versatile connections.

Modular Accessories

• Shrink disk, mounting flange, motor flange, cooling fan, torque arm, double input shaft.

Models and Variants

• MC.H Series: Parallel shaft gearbox, 2-3 stages, for high-efficiency applications.
• MC.B Series: Right-angle gearbox with helical bevel gears, 2-3 stages.

Safety Features

The MC Series industrial gearbox ensures safe operation through:

• Robust Housing: Cast iron withstands high stress and wear.
• Precision Gears: Hardened helical and bevel gears minimize vibration.
• Flexible Shafts: Solid or hollow outputs ensure stable transmission.
• Reliable Accessories: Modular components enhance operational safety.

Customization Options

• Power Range: 7.05-1066kW for diverse applications.
• Ratio Range: 7.1:1 to 112:1 for precise control.
• Mounting Types: Horizontal, vertical, or upright mounting.
• Output Options: Solid shaft or hollow shaft with keyway, shrink disk, or flange.
• Accessories: Shrink disk, motor flange, cooling fan, torque arm, double input shaft.

Installation and Lubrication

• Mounting Types: Horizontal, vertical, or upright mounting; six-side mounting capability.
• Installation Methods: Foot mounted or torque arm mounted.
• Lubrication:
  • Splash lubrication for low oil level (horizontal mounting).
  • Immersion lubrication for high oil level (vertical/upright mounting).

Maintenance Best Practices

• Lubrication Checks: Inspect oil levels every 6 months, adjusting based on mounting type.
• Gear Inspection: Annual checks for wear on helical and bevel gears.
• Accessory Maintenance: Ensure cooling fans and torque arms are functional.
• Clean Environment: Prevent debris from affecting gears or shafts.

Economic Benefits

• Cost-Effective Design: Modular structure reduces installation costs.
• Energy Efficiency: High-efficiency gears lower power consumption.
• Long Service Life: Durable cast iron housing minimizes replacement needs.
• Low Maintenance: Optimized lubrication systems reduce upkeep expenses.

Why Choose the MC Series Industrial Gearbox?

The MC Series industrial gearbox from DONGQI delivers high-power, high-load performance for heavy-duty applications. With a 7.05-1066kW range, 7.1-112 ratio, and modular design, it’s ideal for crushing, mixing, and material handling in mining, chemical, and food industries. Its robust construction ensures reliable, cost-effective solutions.
