MVE Series Vibration Motor – 0-250kN, 750-3600 RPM

MVE Series Vibration Motor – 0-250kN, 750-3600 RPM

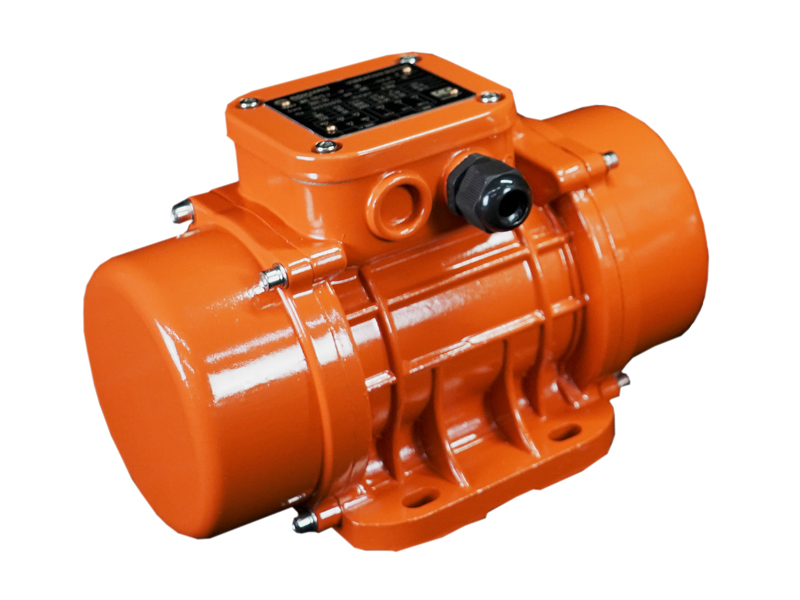

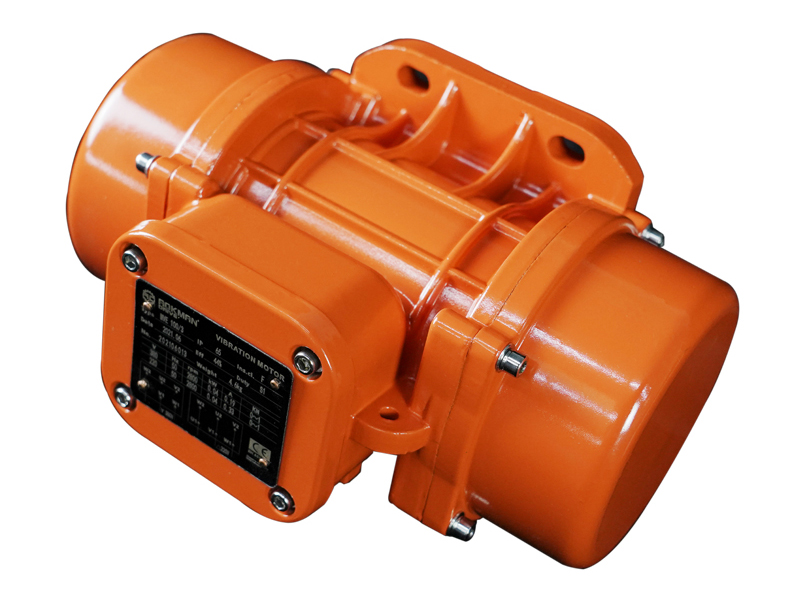

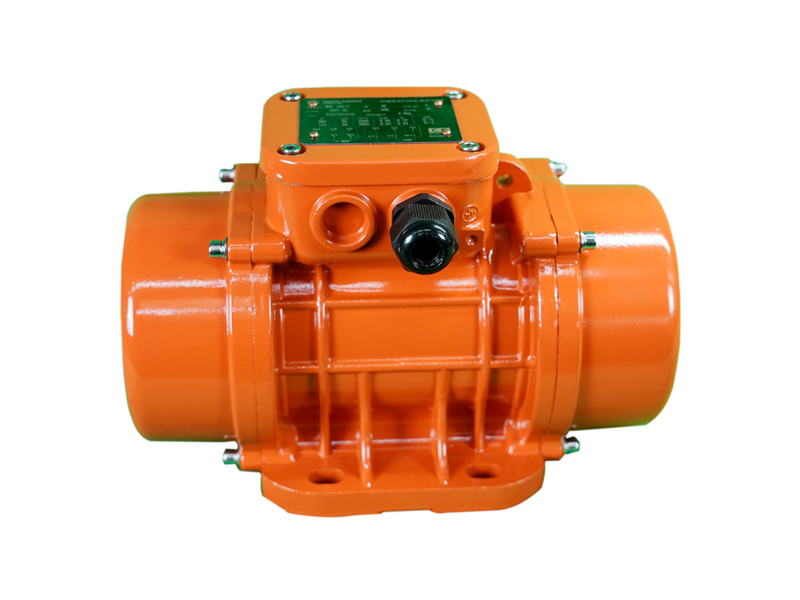

The DongQi MVE Series 3 Phase Asynchronous Vibration Motors, also known as electric vibrators, deliver superior performance for demanding applications like vibrating screens, conveyors, and feeders. With a rated centrifugal force up to 250kN and speeds from 750 to 3600 RPM, these motors feature a totally enclosed structure for dusty environments without explosion-proof needs. Customizable installation dimensions allow easy replacement of other brands, ensuring seamless integration. DONGQI offers tailored MVE Series vibration motor solutions for optimal efficiency.

Applications of MVE Series Electric Vibrator

The MVE Series excels in industrial vibration tasks, including:

• Vibrating Screens – Precise screening of materials in mining and aggregate processing.
• Vibrating Conveyors – Efficient material transport in food and chemical industries.
• Vibrating Feeders – Reliable feeding for crushers and hoppers in manufacturing.
• Other Applications – Supports compaction, separation, and orientation in diverse sectors.

This 3-phase asynchronous vibration motor is ideal for high-efficiency, low-maintenance vibration systems.

Advantages of MVE Series Vibration Motor

Key benefits include:

• Reasonable Design – Compact size and light weight for easy handling and installation.
• Totally Enclosed Structure – Dust-resistant without explosion-proof requirements for versatile use.
• High Efficiency – Optimized for energy-saving operation in continuous duty.
• Low Noise – Quiet performance enhances workplace comfort.
• Customizable Dimensions – Standard or tailored specs to replace other brands seamlessly.
• Optional PTC130 Sensor – Monitors temperature for enhanced safety and longevity.
• Wide Speed Range – 750-3600 RPM for precise vibration control.

Technical Parameters of MVE Series 3 Phase Asynchronous Vibration Motor

Parameter	Specification
Rated Centrifugal Force	0 to 250 kN
Speed (50Hz)	3000, 1500, 1000, 750 RPM
Speed (60Hz)	3600, 1800, 1200, 900 RPM
Poles	2, 4, 6, 8
Voltage	220/380 V (or request)
Frequency	50/60 Hz
Ambient Temperature	-20°C ~ +40°C
Altitude	≤ 1000 m
Insulation Class	F
Ingress Protection	IP55, IP65, IP66
Duty Cycle	S1
Cooling	IC410
Mounting	Foot

Main Components

Housing

• Material: Die-cast aluminum alloy for lightweight and corrosion resistance.
• Design: Totally enclosed structure for dusty, non-explosion environments.

Gear Set

• Type: High-quality alloy steel gears with precision manufacturing.
• Feature: Ensures high centrifugal force up to 250kN for effective vibration.

Input Configurations

• Equipped with 3-phase asynchronous AC motors (4 poles, mounting B5/B35).
• Supports customizable voltage and frequency for global compatibility.

Output Configurations

• Keyed solid shaft output for direct vibration attachment.
• Optional configurations for specific mounting needs.

Models and Variants

• MVE Series: Standard models for various centrifugal forces and speeds, customizable to replace other brands.
• Poles: 2, 4, 6, 8 for speed options from 750 to 3600 RPM.

Safety Features

The MVE Series vibration motor ensures safe operation through:

• Totally Enclosed Housing – Protects against dust and moisture (IP55/IP65/IP66).
• High Insulation Class – F class for thermal protection.
• Optional PTC130 Sensor – Monitors temperature to prevent overheating.
• S1 Duty Cycle – Supports continuous operation without overload risks.

Customization Options

• Centrifugal Force: 0-250kN for tailored vibration intensity.
• Speed Range: 750-3600 RPM (50/60Hz) for precise control.
• Voltage/Frequency: 220/380V, 50/60Hz, or custom.
• Installation Dimensions – Standard or modified to match other manufacturers.
• Accessories: PTC130 sensor for temperature monitoring.

Installation and Maintenance

• Mounting Type: Foot mounting for simple, secure setup.
• Ambient Conditions: -20°C ~ +40°C, altitude ≤1000m.
• Maintenance: Regular cleaning of enclosed housing; inspect gears and bearings annually.
• Cooling: IC410 self-ventilation for efficient heat dissipation.

Economic Benefits

• Cost-Effective Replacement – Custom dimensions allow easy swap with other brands.
• Energy Efficiency – High-efficiency design lowers power consumption.
• Long Service Life – Durable alloy steel and enclosed structure minimize maintenance.
• Low Noise Operation – Reduces workplace disruption for higher productivity.

Why Choose the MVE Series Vibration Motor?

The MVE Series vibration motor from DongQi provides high-efficiency, low-noise power for industrial vibration applications. With 0-250kN centrifugal force, 750-3600 RPM speeds, and customizable dimensions, it’s ideal for screens, conveyors, and feeders. Its totally enclosed design ensures reliable performance in dusty environments.
