Y2 Series 3 Phase AC Motor – 0.06-22kW, 1000-3000 RPM

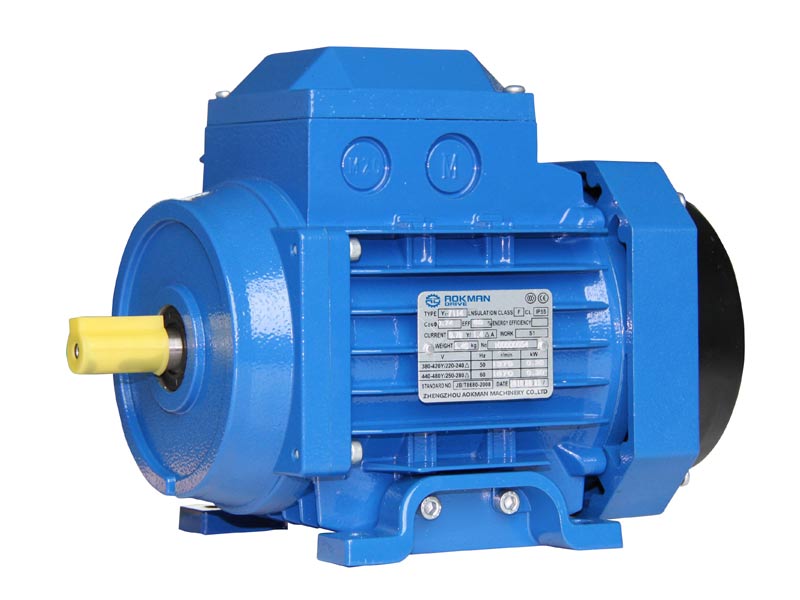

The DongQi® Y2 Series 3 Phase AC Asynchronous Motors, adhering to IEC standards, feature a cast aluminum housing with a square ABB Motor design and detachable mounting feet. Engineered for dustproof and waterproof performance, these induction motors offer low noise, low vibration, energy efficiency, and a long service life. With power outputs from 0.06kW to 22kW and speeds of 1000-3000 RPM, the Y2 Series is ideal for diverse industrial applications requiring reliable, customizable motor solutions.
Applications of Y2 Series 3 Phase AC Motor
The Y2 Series excels in a wide range of industrial applications, including:
- Pumps and Fans – Powers fluid and air movement in HVAC and water systems.
- Conveyors – Reliable drive for material handling in manufacturing and logistics.
- Compressors – Efficient operation for air and gas compression systems.
- Machinery – Supports crushers, mixers, and other equipment in mining and construction.
This 3-phase AC motor is perfect for versatile, high-efficiency industrial tasks.
Advantages of Y2 Series 3 Phase AC Motor
Key benefits include:
- Energy Efficiency – Optimized design reduces power consumption.
- Low Noise and Vibration – Precision components ensure smooth, quiet operation.
- Dustproof and Waterproof – IP54/IP55/IP56 ratings for harsh environments.
- Long Service Life – Durable aluminum housing and high-quality bearings enhance reliability.

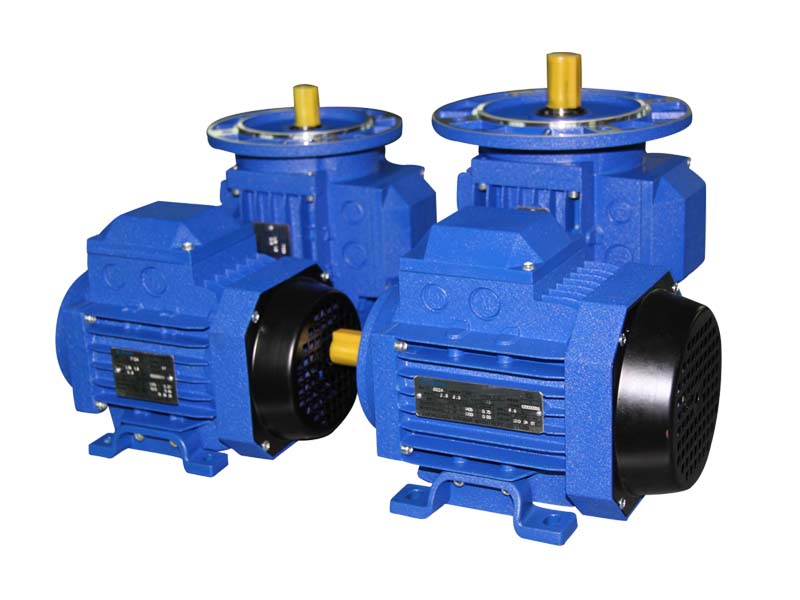

- Customizable Mounting – Detachable feet with multiple mounting options (B3, B5, B14, B34, B35).
- High-Quality Components – C&U, NSK, or SKF bearings and silicon steel cores for performance.
- Wide Power Range – 0.06-22kW (0.08-30HP) for diverse applications.
Technical Parameters of Y2 Series 3 Phase AC Motor
| Parameter | Specification |
|---|---|
| Power | 0.06 kW |
| Output Speed | 3000 RPM, 1500 RPM, 1000 RPM |
| Poles | 2P, 4P, 6P |
| Voltage | 380VAC |
| Frequency | 50Hz/60Hz |
| Frame Sizes | H56~H180 |
| Shaft Diameter | Φ9~Φ48 |
| Ingress Protection | IP54, IP55, IP56 |
| Insulation Level | F |
| Duty | Continuous duty (S1) |
| Cooling | IC411 |
| Mounting Options | IM B3, B5, B14, B34, B35 |
Main Components
Housing
- Material: Die-casting aluminum for lightweight durability and corrosion resistance.

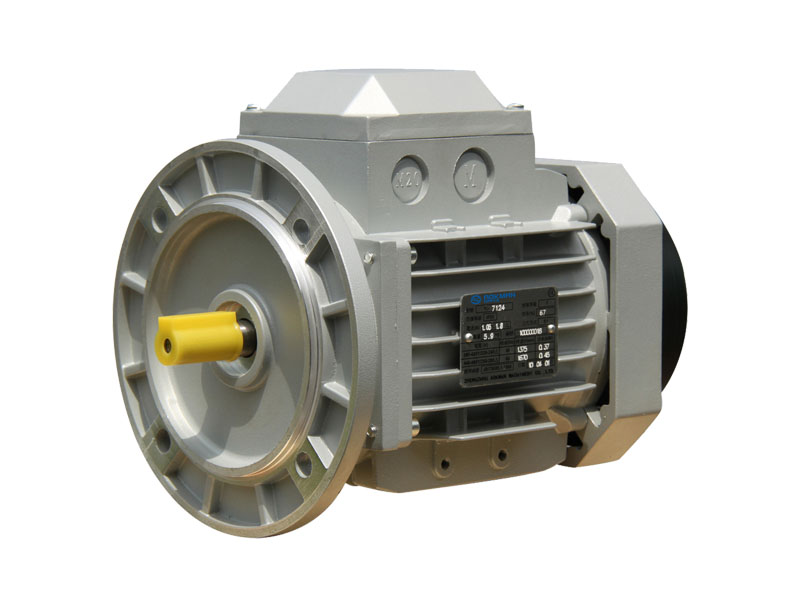

- Design: Square ABB Motor design with detachable feet for versatile mounting.
Shaft
- Material: 40Cr steel for high strength and wear resistance.
- Feature: Precision-machined for reliable power transmission.
Magnet Wires
- Type: QZ-2/155, QZY-2/180 for high thermal and electrical performance.
- Feature: Ensures efficient motor operation under continuous duty.
Stator & Rotor Core
- Material: Silicon steel sheets (DW470, DW600) for enhanced magnetic efficiency.
- Feature: Reduces energy loss and improves motor performance.
Bearings
- Brands: C&U, NSK, or SKF for high reliability and low friction.
- Feature: Supports smooth operation and extended motor life.
Models and Variants
- Y2 Series: Frame sizes H56~H180, power 0.06-22kW, poles 2P, 4P, 6P, speeds 1000-3000 RPM.
- Mounting Variants: IM B3, B5, B14, B34, B35 for flexible installation.
Safety Features
The Y2 Series 3 Phase AC Motor ensures safe operation through:
- Dustproof and Waterproof Housing – IP54/IP55/IP56 ratings protect against environmental hazards.
- High Insulation Level – Class F insulation ensures thermal stability.
- Robust Bearings – C&U, NSK, or SKF bearings reduce wear and enhance safety.
- Continuous Duty (S1) – Designed for reliable, non-stop operation.
Customization Options
- Power Range: 0.06-22kW (0.08-30HP) for diverse industrial needs.
- Speed Options: 1000, 1500, 3000 RPM (2, 4, 6 poles) for precise control.
- Frame Sizes: H56~H180 for compact or larger setups.
- Mounting Types: B3, B5, B14, B34, B35 for flexible installation.
- Shaft Diameter: Φ9~Φ48 for compatibility with various systems.
Installation and Maintenance
- Mounting Types: IM B3, B5, B14, B34, B35 for versatile setups.
- Maintenance: Inspect bearings and magnet wires annually; clean housing to prevent dust buildup.
- Cooling: IC411 self-ventilation for efficient heat dissipation.
Economic Benefits
- Energy Efficiency – High-efficiency design reduces operating costs.
- Long Service Life – Durable aluminum housing and quality components minimize replacements.
- Low Maintenance – Reliable bearings and robust construction reduce upkeep expenses.
- Cost-Effective Installation – Detachable feet and multiple mounting options simplify setup.
Why Choose the Y2 Series 3 Phase AC Motor?
The Y2 Series 3 Phase AC Motor from DongQi delivers high-efficiency, low-noise performance for industrial applications. With a 0.06-22kW power range, 1000-3000 RPM speeds, and customizable mounting, it’s ideal for pumps, conveyors, and compressors. Its dustproof, waterproof design ensures reliable, cost-effective operation.
