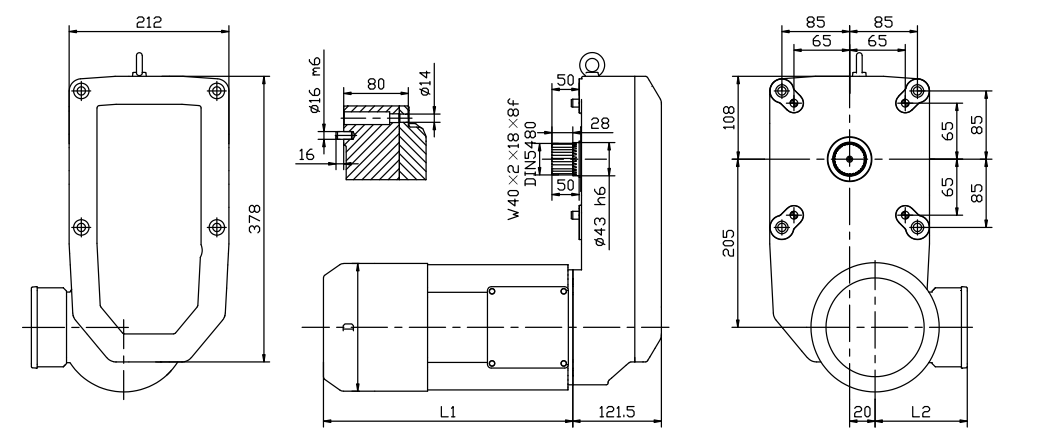

JHD032 Wire Rope Hoist 1.6-3.2T Dual Speed Ø140mm – Professional Dual-Speed Lifting Solution
The JHD032 Wire Rope Hoist 1.6-3.2T Dual Speed delivers reliable lifting performance with dual-speed motor technology for industrial applications requiring flexible capacity and operational control. This wire rope hoist combines CATET’s proven hoisting engineering with dual-speed motor control and Ø140mm drum design to provide comprehensive lifting solutions across the 1.6-3.2 ton capacity range with high-speed and low-speed operation capabilities.
Technical Specifications and Performance Features
The hoisting system provides 1.6-3.2 ton lifting capacity with dual-speed motor configuration for enhanced operational flexibility. This JHD032 dual-speed system features robust construction with Ø140mm drum diameter, providing optimal lifting efficiency while offering operators the flexibility to select between high-speed positioning and precision low-speed lifting modes.
The dual-speed configuration enables operators to optimize productivity through rapid positioning while maintaining precise control for delicate load handling operations. The Ø140mm drum design ensures efficient wire rope handling and reliable lifting performance across both speed settings.
Mechanical Design Features
The wire rope hoist utilizes quality components engineered for dual-speed operation:
- High-strength alloy steel gear components for durability
- Ø140mm drum diameter for optimal rope capacity
- Two-speed motor for operational flexibility
- Precision ball bearings for smooth operation
- Aluminum housing providing excellent heat dissipation
- Electromagnetic brake system for immediate load holding
- IP55 protection class suitable for industrial environments
The mechanical components are designed to provide reliable hoisting performance with dual-speed motor functionality across variable load ranges.
Operational Features
The dual-speed hoisting system provides:
- High-speed mode: Rapid load positioning for improved productivity
- Low-speed mode: Precise lifting control for delicate operations
- Reliable speed switching capability
- Consistent performance across capacity range
The hoist maintains reliable mechanical performance across both speed settings, ensuring smooth lifting operations with enhanced operational control.
Safety and Protection Systems
Standard safety features include:
- Electromagnetic brake for immediate load holding
- IP55 environmental protection rating
- Thermal protection for motor components
- Emergency stop integration capability
- Overload protection systems
Installation and System Integration
The hoisting system offers flexible installation options:
- Multiple mounting orientations available
- Standard crane beam integration
- Compatible with existing crane structures
- Standard control interface connections
Control System Compatibility
The dual-speed system accepts:
- Standard pendant control systems
- Remote control interfaces (optional)
- Integration with existing crane control systems
- Emergency stop and safety circuit connections
Technical Performance Data
Standard Specifications:
- Model: JHD032
- Capacity range: 1.6-3.2 tons
- Drum diameter: Ø140mm
- Motor type: Two-speed operation
- Voltage: 380V (standard)
- Frequency: 50Hz (standard)
- Duty classification: M5/FEM
- Protection class: IP55
- Brake: Electromagnetic brake system
Dual-Speed Performance:
- Speed modes: High-speed / Low-speed
- Operation: Two-speed motor control
- Speed switching: Reliable transition capability
Quality Manufacturing Standards
The hoist follows CATET’s established manufacturing protocols:
- Precision manufacturing and assembly processes
- Comprehensive quality control testing
- Wire rope and drum inspection protocols
- Standard product warranty coverage
- Complete technical documentation provided
Application Suitability
The dual-speed wire rope hoist serves various industrial applications:
- Manufacturing facilities requiring flexible lifting operations
- Warehouse operations needing rapid and precise load handling
- Construction sites demanding reliable dual-speed capability
- Maintenance workshops requiring versatile load control
Technical Support and Configuration
For proper system operation:
- Professional installation recommended for dual-speed applications
- Technical consultation available for system integration
- Comprehensive user documentation provided
- Ongoing technical support available
Maintenance Requirements
The hoisting system requires:
- Regular mechanical maintenance per CATET specifications
- Wire rope inspection and replacement schedules
- Periodic brake system inspection and adjustment
- Routine electrical connection checks
- Standard lubrication maintenance schedules
Contact CATET technical support for specific dual-speed hoist configurations, installation guidance, and system integration support for your industrial lifting applications.
