JZL/JZS Series Brick Machine Gearbox – 55-315kW, 20-45 RPM

JZL/JZS Series Brick Machine Gearbox: Reliable Power for Production

Brick Machine Gearbox: Efficient Transmission for Brick Manufacturing (64 characters)

Overview of the JZL/JZS Series Gearbox

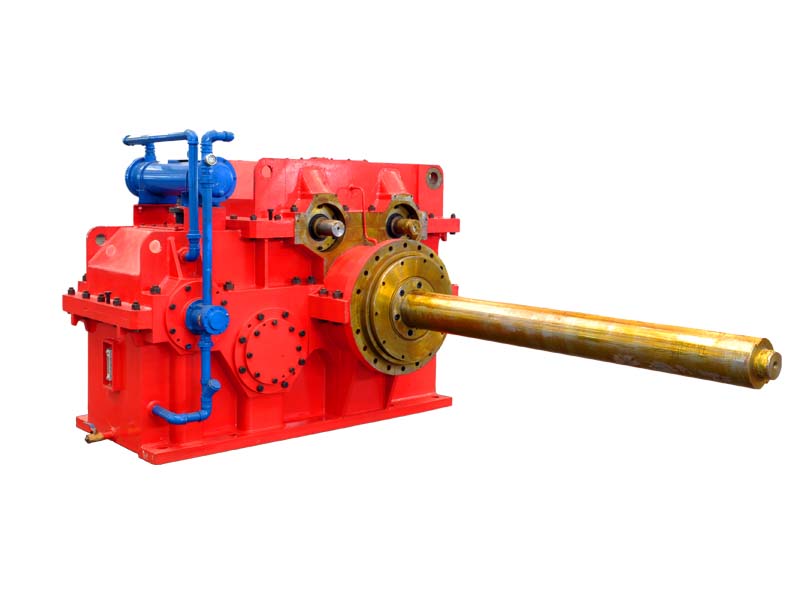

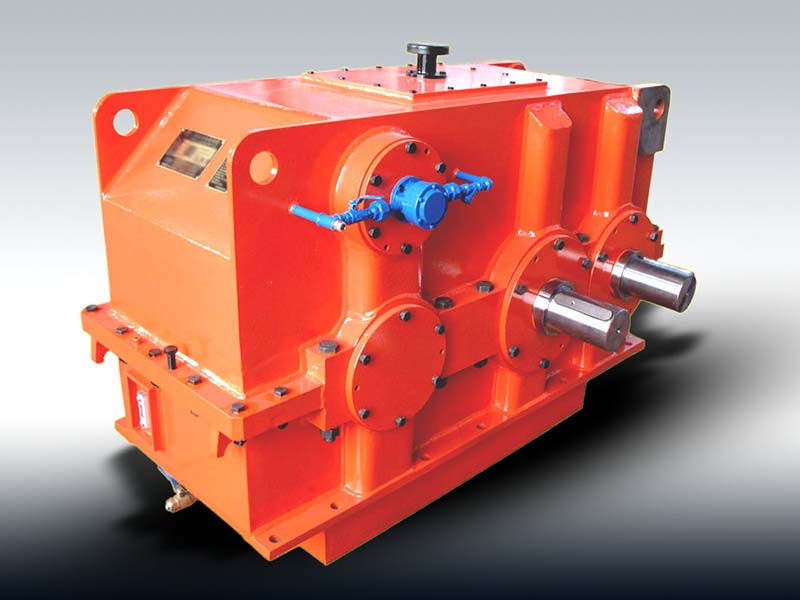

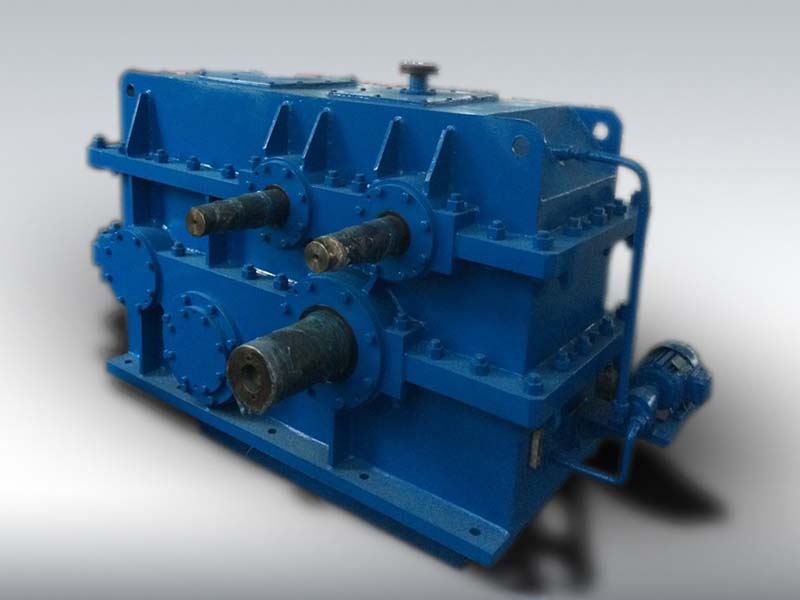

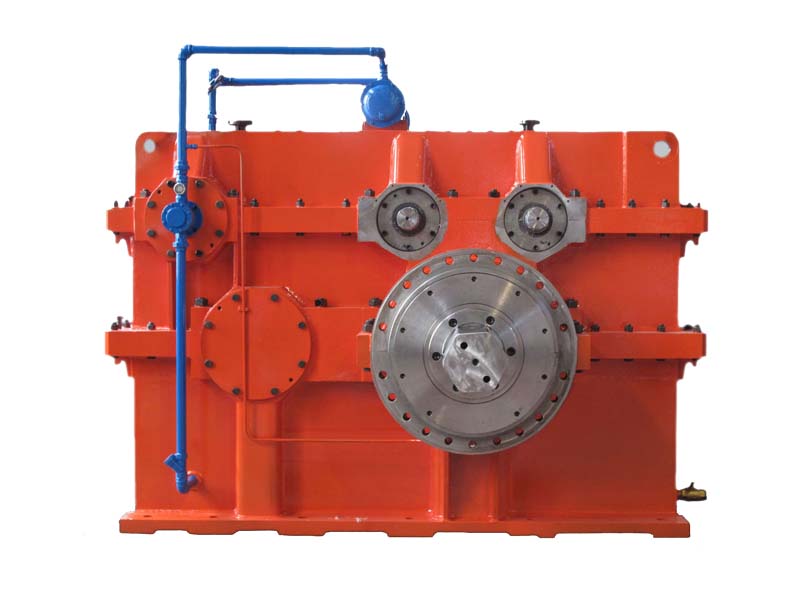

The DongQi® JZL/JZS Series Brick Machine Gearbox is engineered for brick production, offering robust power transmission with 55-315kW input and 20-45 RPM output speeds. With 2- or 3-stage gear transmission and customizable options, it provides high reliability, efficiency, and performance. Ideal for demanding brick machines and production lines.

For best practices in material handling, see Material Handling Guidelines.

Main Components of the Gearbox

Key elements ensure durable operation:

• Housing: Cast iron or welded steel for heat dissipation in dusty settings.
• Gear Set: Hardened 2- or 3-stage gears for low noise and efficiency.
• Input Shaft: Keyed solid shaft for secure motor connection.
• Output Shaft: Reliable transmission to brick machines.
• Supporting Gearboxes: Bevel helical, planetary, cycloidal, or electric rollers.

Applications of the JZL/JZS Gearbox

This series excels in high-load scenarios:

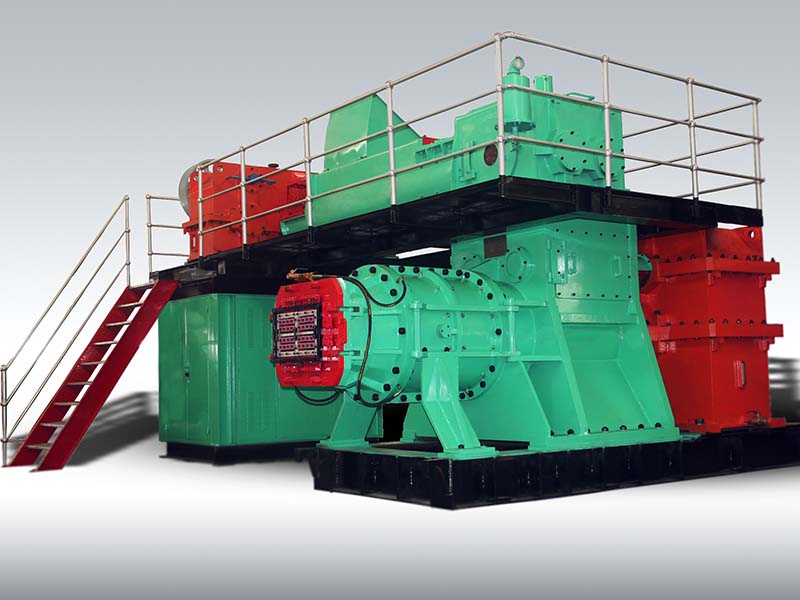

• Brick Machines: Powers consistent block molding.
• Production Lines: Drives extruders, mixers, and conveyors.
• Construction Materials: Supports torque-heavy cement brick operations.

Perfect for continuous-duty brick and block manufacturing.

Advantages of the Brick Machine Gearbox

Key benefits include:

• High Reliability: Stable in demanding environments.
• Energy Efficiency: Minimizes loss with optimized gears.
• Customizable Design: Tailored to specific needs.
• Low Noise: Reduces vibration for smooth runs.
• Robust Build: Withstands high-load continuous operation.

Technical Parameters

Model	Power (kW)	Input Speed (RPM)	Output Speed (RPM)	Center Distance (mm)
JZL750	55~75	600~700	30~45	750
JZL850	90~110	560~650	35~40	850
JZL900	110~132	500~600	30~35	900
JZS1000	132~160	625~750	30~35	1000
JZS1150	180~200	500~600	22~26	1150
JZS1300	250~280	560~750	22~26	1300
JZS1400	280~315	560~750	22~26	1400
JZS1500	315	500~650	20~25	1500

Safety and Customization Features

• Robust Housing: Handles stress in continuous duty.
• Precision Gears: Minimizes vibration for stability.
• Secure Shafts: Ensures reliable connections.
• Power Range: 55-315kW for varied requirements.
• Output Speed: 20-45 RPM for precise control.

Installation and Maintenance Tips

Mounting is horizontal for easy brick machine integration. Lubrication options include oil dip for standard use or circulating for heavy-duty. Cooling features natural or auxiliary methods.

For detailed guidance, refer to Maintenance Best Practices.

Economic Benefits of the Gearbox

• Cost-Effective: Reduces installation expenses.
• Energy Savings: Lowers consumption with efficient gears.
• Long Life: Minimizes replacements.
• Low Upkeep: Advanced systems cut maintenance costs.

Why Choose JZL/JZS Series?

The JZL/JZS Series from DongQi offers reliable power for brick production. Its customizable, high-efficiency design ensures long-lasting performance in demanding setups.
