Steel Plate Flip Machine Gearbox – 100-400 Ratio

Steel Plate Flip Machine Gearbox – 100-400 Ratio

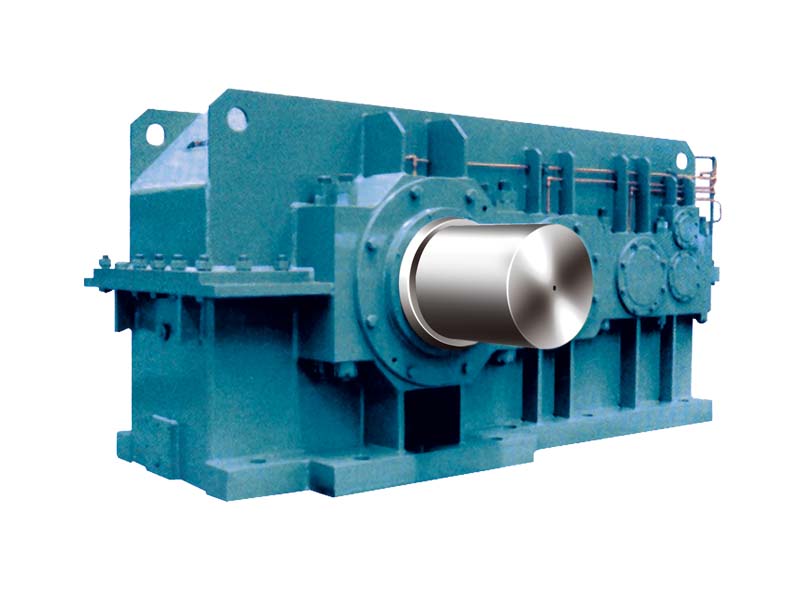

The DongQi Steel Plate Flip Machine Gearbox is meticulously engineered for steel plate and heavy plate flipping in steel rolling production lines. With a 100:1 to 400:1 ratio and a maximum torque of 1500kN.m, this gearbox delivers exceptional load capacity and reliability. Featuring a robust steel plate welded housing and customizable configurations, DongQi’s flip machine gearbox ensures high performance in demanding industrial environments like metallurgy and cement production.

Applications of Steel Plate Flip Machine Gearbox

The Steel Plate Flip Machine Gearbox excels in heavy-duty industrial applications, including:

• Steel Plate Flipping – Powers precise flipping of steel plates in rolling mills.
• Heavy Plate Flipping – Handles large, heavy plates for efficient processing.
• Metallurgy and Mining – Reliable drive for steel and ore handling systems.
• Cement and Building Materials – Supports heavy-duty material processing.
• Energy and Lifting Systems – Robust operation for cranes and transport equipment.

This gearbox is ideal for high-load, continuous-duty tasks in rugged industrial settings.

Advantages of Steel Plate Flip Machine Gearbox

Key benefits include:

• Large Load Capacity – Handles up to 1500kN.m torque for heavy plate flipping.
• High Reliability – Robust design ensures stable performance in harsh conditions.
• High Usability – Output shaft withstands large radial forces for versatile applications.
• Customizable Design – Tailored sizes and configurations for specific needs.
• High Efficiency – Optimized gear system minimizes energy loss.
• Durable Construction – Steel plate welded housing for long-term durability.
• Low Maintenance – Engineered for minimal upkeep in demanding environments.

Technical Parameters of Steel Plate Flip Machine Gearbox

Parameter	Specification
Housing	Steel Plate Welding
Steel Plate Width	3000~5500mm
Input Speed	500~1500 RPM
Ratio	100~400
Max. Torque	1500kN.m

Note: Consult DongQi technical engineers for detailed parameters and customization options.

Main Components

Housing

• Material: Steel plate welding for superior strength and durability.
• Design: Optimized to withstand large radial forces and harsh conditions.

Gear Set

• Type: High-precision gears designed for heavy-duty flipping tasks.
• Feature: Engineered for high torque and low noise operation.

Output Configurations

• Type: Keyed solid shaft output designed to handle large radial forces.
• Feature: Ensures reliable power transmission for steel plate flipping.

Safety Features

The Steel Plate Flip Machine Gearbox ensures safe operation through:

• Robust Housing: Steel welded construction withstands high stress and wear.
• Precision Gears: Minimizes vibration for stable, safe performance.
• Secure Output Shaft: Handles large radial forces for reliable operation.
• Durable Design: Built for continuous duty in rugged industrial environments.

Customization Options

• Ratio Range: 100:1 to 400:1 for precise torque control.
• Torque Capacity: Up to 1500kN.m for heavy-duty applications.
• Steel Plate Width: Supports 3000~5500mm plates for flexibility.
• Input Speed: 500~1500 RPM for versatile motor integration.
• Configurations: Customizable sizes to meet specific production line needs.

Installation and Lubrication

• Mounting Type: Designed for seamless integration with steel rolling production lines.
• Lubrication:
  • Oil dip and splash lubrication for standard operation.
  • Circulating lubrication for heavy-duty, continuous use.
• Cooling: Natural cooling or auxiliary cooling devices for heat management.

Maintenance Best Practices

• Lubrication Checks: Inspect oil levels every 6 months; use circulating lubrication for continuous duty.
• Gear Inspection: Annual checks for wear on gear sets.
• Housing Maintenance: Ensure welded housing integrity in dusty environments.
• Clean Environment: Prevent debris from affecting gears or output shaft.

Economic Benefits

• Cost-Effective Design: Customizable configurations reduce installation costs.
• Energy Efficiency: High-efficiency gears lower power consumption.
• Long Service Life: Durable steel housing minimizes replacement needs.
• Low Maintenance: Advanced lubrication systems reduce upkeep expenses.

Why Choose the Steel Plate Flip Machine Gearbox?

The DongQi Steel Plate Flip Machine Gearbox delivers high-load, high-reliability power transmission for steel rolling production lines. With a 100-400 ratio, 1500kN.m torque, and robust steel welded housing, it’s ideal for steel plate and heavy plate flipping in metallurgy, mining, and cement industries. Its durable design ensures cost-effective, long-lasting performance.
