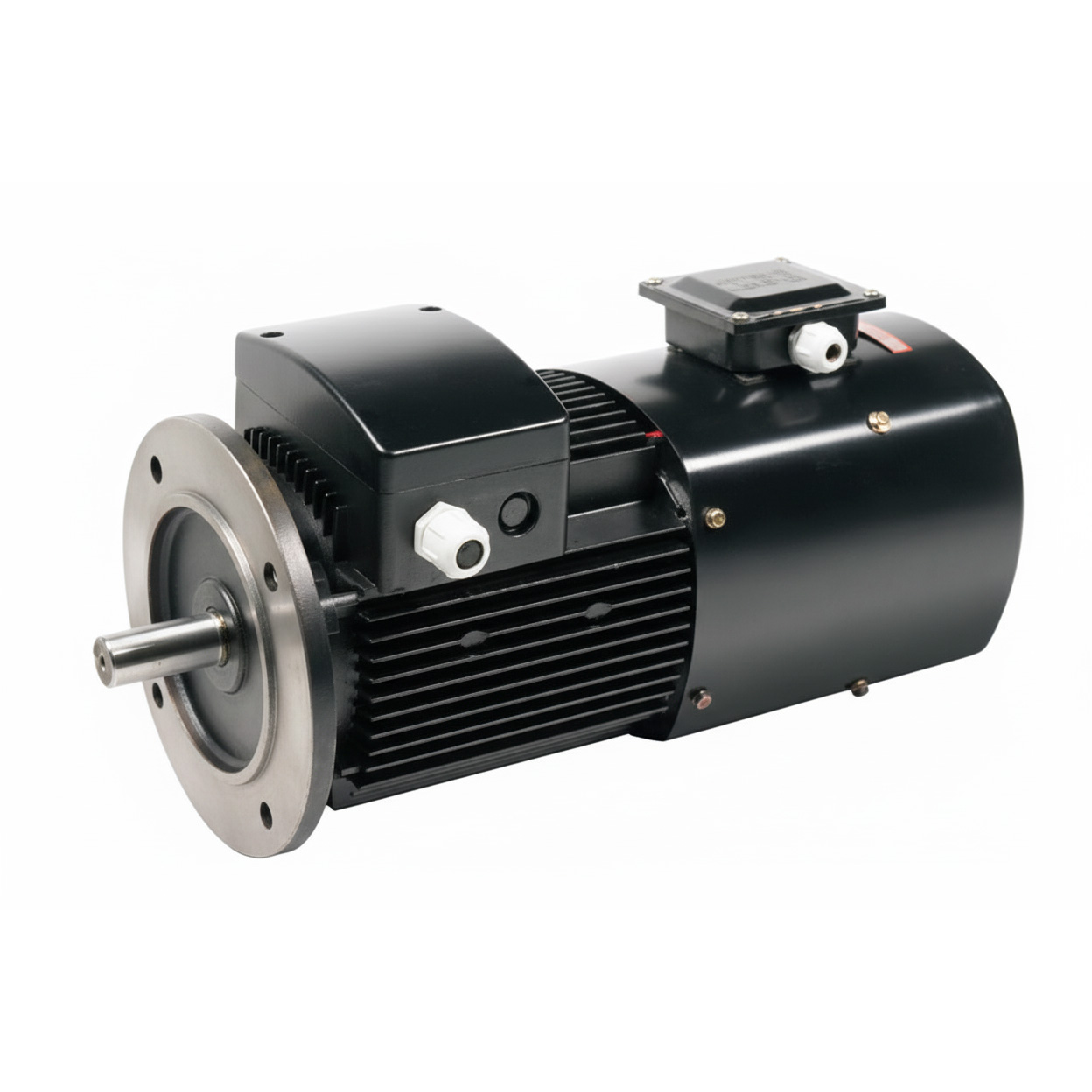

Variable Frequency Drive Motor 1.5-90kW VFD – YVP Series Advanced Motor Control Solution
The Variable Frequency Drive Motor 1.5-90kW VFD – YVP Series offers exceptional motor performance with integrated variable frequency drive compatibility for industrial applications requiring precise speed control. This variable frequency drive motor combines CATET’s proven motor engineering with advanced VFD technology to provide precise speed adjustment and energy-efficient operation across a comprehensive power range from 1.5kW to 90kW.
Technical Specifications and Performance Features
The YVP series delivers comprehensive speed control with 1.5-90kW power range featuring integrated variable frequency drive systems for enhanced operational control. This VFD motor system maintains robust construction while providing smooth speed variation and energy-efficient performance across diverse industrial applications requiring precise motor control.
The variable frequency drive system provides infinitely variable speed control, enabling optimal motor performance for varying load conditions. This motor series delivers consistent torque characteristics while maximizing energy efficiency through intelligent speed control.
Mechanical Design Features
The variable frequency drive motor utilizes advanced components engineered for VFD operation:
- High-efficiency three-phase induction motor design optimized for VFD control
- Enhanced insulation system for VFD compatibility
- Aluminum housing providing excellent heat dissipation
- Precision ball bearings for smooth variable speed operation
- IP55 protection class suitable for industrial environments
- Standard mounting configurations for versatile installation
The mechanical components are specifically designed to handle the operational characteristics of variable frequency drive control systems.
Operational Features
The YVP series VFD motor provides:
- Infinitely variable speed control from minimum to maximum speed
- Constant torque characteristics across speed range
- Energy-efficient operation through optimized speed control
- Smooth acceleration and deceleration profiles
- Integration with modern VFD control systems
The variable frequency drive motor maintains consistent performance while providing essential speed control functions for industrial applications requiring precise motor operation.
Safety and Protection Systems
Standard safety features include:
- Enhanced motor protection for VFD operation
- IP55 environmental protection rating
- Thermal protection optimized for variable speed operation
- Integration capability with VFD safety systems
- Reliable operation across full speed range
Installation and System Integration
The VFD motor design offers flexible installation options:
- Standard mounting configurations available
- Compatible with various VFD manufacturers
- Standard electrical connections for VFD systems
- Integration with automation control systems
VFD Control Compatibility
The YVP series accepts:
- Standard VFD control signals
- Various VFD manufacturer systems
- Integration with PLC and automation circuits
- Advanced motor control algorithms
Technical Performance Data
Power Range Specifications:
- Power range: 1.5-90kW
- Motor type: Three-phase induction motor optimized for VFD
- Voltage: 380V (standard)
- Frequency: Variable (VFD controlled)
- Protection class: IP55
- Control: Variable frequency drive compatible
- Efficiency: High-efficiency design for VFD operation
VFD Performance:
- Speed control: Infinitely variable
- Torque characteristics: Constant torque design
- Energy efficiency: Optimized for variable speed operation
- Response: Smooth acceleration/deceleration
Quality Manufacturing Standards
The motor system follows CATET’s established manufacturing protocols:
- Precision motor manufacturing optimized for VFD operation
- Enhanced insulation systems for VFD compatibility
- Comprehensive quality control testing procedures
- Standard product warranty coverage
- Complete technical documentation provided
Application Suitability
The YVP series motor serves various VFD applications:
- Manufacturing processes requiring variable speed control
- Pump and fan applications with energy efficiency requirements
- Conveyor systems needing precise speed adjustment
- Process machinery requiring variable speed operation
- HVAC systems with energy optimization needs
- Industrial automation requiring precise motor control
Technical Support and Configuration
For proper VFD motor operation:
- Professional installation recommended for VFD applications
- Technical consultation available for VFD system integration
- Comprehensive user documentation provided
- Ongoing technical support for variable frequency drive motor applications
Maintenance Requirements
The VFD motor requires:
- Standard motor maintenance optimized for VFD operation
- Periodic VFD system inspection and parameter verification
- Routine electrical connection checks
- Enhanced bearing maintenance for variable speed operation
Contact CATET technical support for specific motor configurations, VFD compatibility requirements, and system integration guidance. Detailed specifications available upon request for project-specific applications.
