Defining Shaft Mounted Gear Reducers in Modern Industrial Applications

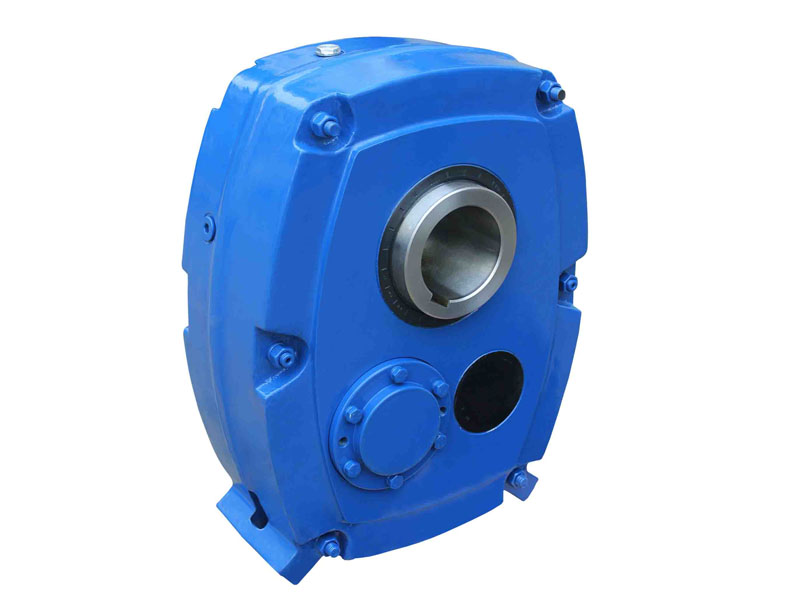

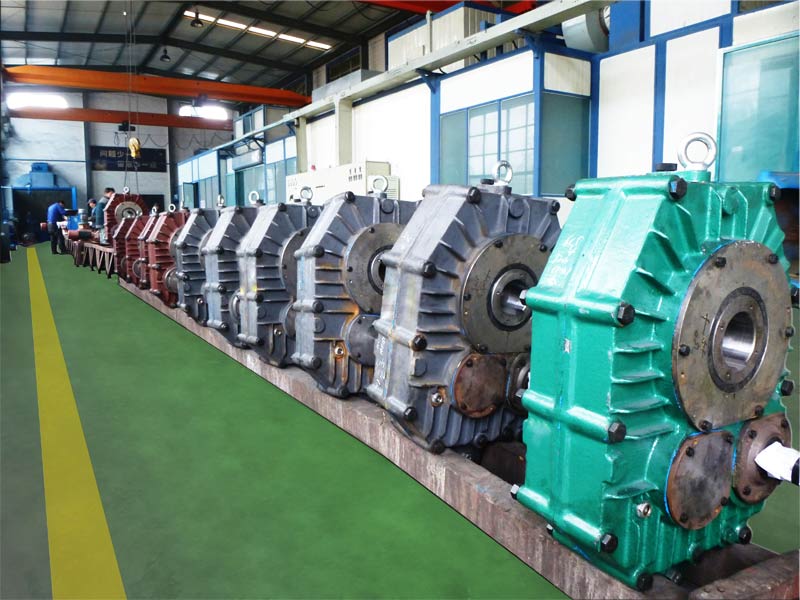

A shaft mounted gearbox represents a specialized power transmission device that mounts directly onto the driven shaft of rotating equipment. This design eliminates traditional base-mounting requirements. The innovation fundamentally differs from conventional foot-mounted reducers by utilizing hollow bore construction. The hollow bore slides over conveyor shafts, mixer shafts, or similar rotating components. The shaft mounted gearbox connects through a torque arm assembly. This assembly absorbs reaction forces while preventing housing rotation during operation.
The direct-mounting configuration delivers substantial advantages in industrial environments. Space constraints and installation efficiency drive equipment selection decisions. These compact units typically reduce motor speeds from 1,200-1,800 RPM down to operational ranges between 50-400 RPM. This matches specific application requirements. Research from industry standards organizations indicates promising results. The shaft mounted gearbox mounting approach reduces installation time by approximately 40-60% compared to traditional methods. It simultaneously decreases overall system costs by 15-25%. The global market for these specialized reducers reached $2.8 billion in 2024. Projected growth stands at 5.3% annually through 2030. This growth is driven primarily by expanding automated material handling installations.
The operational mechanism centers on precision-engineered internal components housed within a robust enclosure. Input power enters through a coupling connected to the motor shaft. Internal gearing reduces speed and multiplies torque before transmitting power through the hollow bore to the driven shaft. A critical component—the torque arm—prevents the gearbox housing from rotating. It creates a moment connection to stationary structures. This configuration provides excellent load distribution characteristics and minimizes shaft deflection. Both factors are essential in heavy-duty material handling operations where reliability directly impacts production continuity.
Manufacturing facilities implementing shaft mounted gearbox systems report significant improvements. Maintenance downtime reductions range between 30-45% compared to belt-drive alternatives. These improvements stem primarily from eliminated belt tensioning requirements. Reduced component wear and simplified maintenance procedures also contribute. Furthermore, the enclosed design protects internal components from environmental contaminants. These contaminants accelerate wear in open power transmission systems.
Technical Architecture and Operating Principles
Internal Gear Design and Power Transmission Mechanics

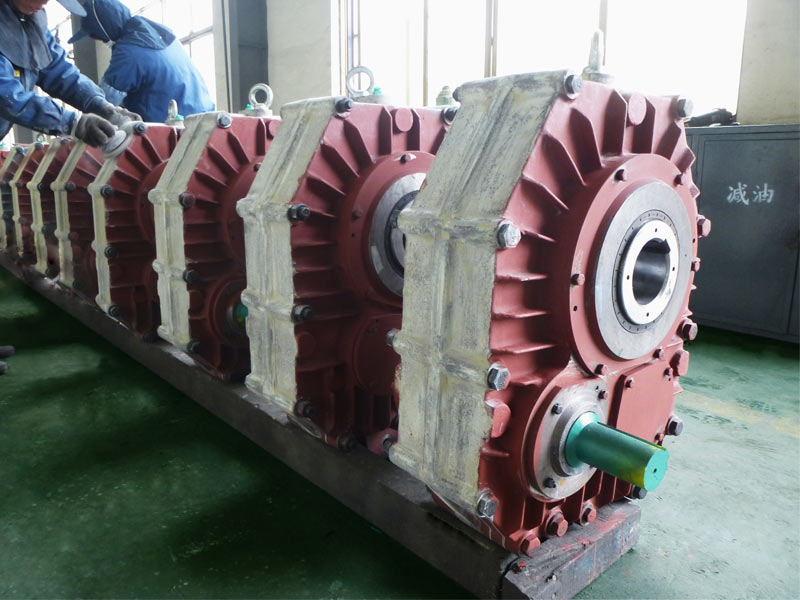

The internal architecture incorporates precision-engineered components optimized for sustained heavy-load operation. Most industrial-grade units feature helical gear arrangements rather than spur gear alternatives. This provides smoother operation and significantly higher load capacity. The helical tooth design distributes forces across multiple teeth simultaneously. This reduces operational noise levels by 8-12 decibels while extending gear life by 50-70% in typical conveyor applications. Premium models incorporate hardened alloy steel gears with surface treatments. These achieve 58-62 HRC hardness ratings, ensuring durability under continuous duty cycles.
The gear geometry follows established engineering principles with specific pressure angles. These typically measure 20 degrees. Helix angles range from 15-30 degrees depending on load characteristics and noise requirements. Tooth profiles conform to standards established by gear manufacturing associations. This ensures consistent performance and interchangeability across different manufacturers. The gear train configuration varies based on reduction requirements. Single-stage designs cover ratios from 5:1 to 60:1. Double-reduction models achieve ratios up to 300:1 for low-speed, high-torque applications.
Mounting Mechanisms and Torque Transfer Systems
The mounting mechanism utilizes either split bushing or shrink disc systems. These create friction-based connections between the gearbox bore and driven shaft. When properly installed according to manufacturer torque specifications, these connections transmit torque loads exceeding 50,000 lb-ft without slippage. This holds true even under shock loading conditions common in aggregate processing or bulk material handling. The split bushing design allows field installation without shaft removal. This significantly reduces installation time and complexity.
The torque arm assembly is typically constructed from fabricated steel plate or cast iron. It mounts to stationary structures through bolted connections. Engineers must position torque arms at optimal angles. These generally fall between 45-60 degrees from horizontal. This minimizes bending stresses on mounting points and maximizes operational stability. Torque arm length affects the magnitude of reaction forces. Longer arms reduce mounting point loads but require more clearance space. Proper torque arm design prevents gearbox rotation. It also accommodates thermal expansion and minor shaft deflection during operation.
Lubrication Systems and Thermal Management
Lubrication systems require careful specification for optimal performance and extended service life. Most manufacturers recommend ISO VG 220-320 synthetic gear oils for standard ambient temperature ranges. Specialized formulations are available for extreme conditions. Oil capacity varies from 2-15 liters depending on physical unit size and power rating. Recommended change intervals typically range from 2,500-5,000 operating hours under normal conditions. Advanced designs incorporate breather assemblies with desiccant cartridges. These prevent moisture ingress, a critical factor since water contamination above 500 PPM can reduce gear life by 60% or more.
Precision sealing systems utilize dual-lip designs. These prevent lubricant loss while excluding environmental contaminants. The seals maintain internal cleanliness essential for extended service intervals between maintenance procedures. Seal selection considers shaft surface speed, operating temperature ranges, and environmental exposure levels. In particularly harsh environments with high dust concentrations or chemical exposure, manufacturers specify enhanced sealing arrangements. These feature triple-lip configurations or pressurized housing designs.
Temperature Control and Efficiency Considerations
Temperature management represents another crucial consideration in gearbox operation. Efficiency typically ranges from 92-96%. Remaining energy dissipates as heat through the housing surface. Thermal analysis indicates that properly sized units operating at rated capacity typically reach steady-state temperatures 20-35°C above ambient conditions. Applications with ambient temperatures exceeding 40°C may require forced cooling systems. Alternatives include oversized thermal capacity or specialized high-temperature lubricants. These measures prevent degradation and premature component failure.
Classification of Shaft-Mounted Gearbox Types
Parallel Shaft Configurations for Conveyor Applications
Parallel shaft designs represent the most prevalent shaft mounted gearbox configuration in material handling systems. They feature input and output shafts aligned on parallel axes. These units excel in conveyor applications where direct mounting to tail shafts or head shafts provides optimal power transfer characteristics. Reduction ratios typically span from 5:1 to 60:1 in single-stage designs. Double-reduction models achieve ratios up to 300:1 for specialized low-speed requirements.
A major food processing company operating in the Midwest implemented parallel shaft mounted gearbox units across 47 conveyor lines handling packaged goods. Over an 18-month operational period, the facility achieved 99.2% uptime. Energy consumption dropped by 14% compared to previous chain-drive systems. The maintenance team attributed these improvements to simplified troubleshooting and reduced component count. Eliminated chain tensioning requirements previously consumed significant maintenance resources.
The parallel configuration offers exceptional versatility in mounting orientations. It accommodates both overhung and in-line load conditions. Service factors ranging from 1.0 to 2.5 allow engineers to account for shock loads, duty cycle variations, and environmental conditions during specification. Standardized mounting dimensions facilitate quick replacements. Experienced maintenance teams typically complete changeouts in under 3 hours. This includes alignment verification and test run procedures.
Right-Angle Designs for Compact Installations
Right-angle or worm gear configurations feature perpendicular input-output shaft orientation. They’re ideal for applications with severe space limitations or requiring high reduction ratios in compact envelopes. These designs commonly achieve ratios from 10:1 to 60:1 in single-stage configurations. The worm gear mechanism provides inherent self-locking characteristics. This proves beneficial in inclined conveyor applications where backdriving prevention is essential. However, efficiency typically ranges from 50-85% depending on ratio and loading conditions. This is notably lower than helical gear alternatives.
A mining operation in the western United States deployed right-angle shaft mounted gearbox reducers on 23 inclined conveyors. These transported iron ore from underground extraction points to surface processing facilities. Units rated at 15 HP input power handled the demanding application. The self-locking feature eliminated the need for external braking systems. This design decision reduced initial installation costs by $127,000 across the project. It eliminated brake components and associated controls. The operation did experience higher operating temperatures. This required upgraded synthetic lubricants and enhanced cooling provisions. Engineers factored these ongoing maintenance considerations into lifecycle cost analysis.
Torque Arm Design Variations and Configuration Options
Torque arm configurations significantly impact installation flexibility and operational reliability across different application scenarios. Fixed torque arms provide rigid mounting to structural supports. They’re ideal for stable, permanent installations where minimal adjustment is required. Adjustable designs allow position modification and accommodate thermal expansion. This proves particularly valuable in high-temperature environments exceeding 50°C ambient. It also helps where settling of supporting structures may occur over time.
Some manufacturers offer universal torque arm kits. These include multiple mounting holes and slotted adjustment provisions. This enables field customization without requiring custom fabrication or welding. This flexibility proves valuable during retrofits. Existing structural mounting points may not align perfectly with optimal torque arm positioning. Additionally, specialized backstop mechanisms prevent reverse rotation in critical applications. Backdriving could cause safety hazards or product damage in these scenarios.
A chemical processing facility in the Gulf Coast region specified backstop-equipped units for 31 vertical conveyors. These transported bulk powder materials. During a facility-wide power outage, the backstop mechanisms prevented reverse rotation. This would have caused material spillage throughout the production area. The plant engineering team calculated the results. This design feature prevented material losses and cleanup costs. The estimate reached $2.3 million over a 5-year operational period. This easily justified the additional equipment cost.
Industrial Application Scenarios and Performance Requirements
Bulk Material Conveyor Systems in Heavy Industry
Bulk material conveyors represent the primary application domain for shaft mounted gearbox reducers. Installations span mining operations, aggregate processing, agricultural facilities, and manufacturing plants. In aggregate processing operations, these units commonly drive belt conveyors. They move 500-2,000 tons per hour of crushed stone, sand, or gravel. The robust construction withstands shock loads from large material impacts. It maintains consistent belt speeds critical for downstream equipment synchronization.
A limestone quarry in the southeastern United States reported 18% productivity improvements. This followed retrofitting 14 conveyors with appropriately sized shaft mounted gearbox units. Detailed application engineering analysis guided the selection. The improvement resulted from reduced unplanned downtime and improved speed control accuracy. Better synchronization with screening and washing equipment also contributed. The quarry operations manager noted previous belt-slip issues. The old drive system had caused frequent production interruptions. The new installation completely eliminated these problems.
Package handling conveyors in distribution centers demand different performance characteristics compared to bulk material applications. These systems emphasize frequent start-stop cycles and precise speed regulation rather than maximum torque capacity. E-commerce fulfillment operations increasingly specify shaft mounted gearbox units with integrated variable frequency drive compatibility. This enables dynamic speed adjustment for sorting and routing operations. Units equipped with thermal overload protection and vibration monitoring systems prevent damage during jam conditions. This is a common occurrence in high-volume sorting applications. These process over 20,000 packages hourly.
Process Industry Mixing and Agitation Systems
Industrial mixing operations utilize shaft-mounted gear drives to transmit power to agitator shafts in vessels containing chemicals, slurries, or viscous materials. The direct mounting configuration eliminates coupling alignment challenges while accommodating shaft deflection inherent in long, cantilevered agitator designs extending several feet into process vessels. Reduction ratios between 20:1 and 100:1 provide the low speeds and high torques necessary for viscous fluid mixing, with some applications requiring output torques exceeding 30,000 lb-ft.
A paint manufacturing facility in the Great Lakes region installed hollow bore reducers on 12 large-scale mixers processing batches up to 5,000 gallons of various coating formulations. The implementation reduced annual maintenance costs by $94,000 through eliminated coupling failures that had previously caused frequent unplanned shutdowns. Engineering analysis revealed that previous alignment-sensitive couplings required readjustment every 200-300 operating hours, while the new shaft-mounted configuration eliminated this maintenance requirement entirely. The sealed construction prevented chemical vapor ingress into the gearbox, extending lubricant change intervals from 1,000 to 3,500 operating hours.
Harsh Environment Applications Requiring Enhanced Protection
Mining and aggregate operations present extreme operating conditions that test equipment durability limits. High ambient dust levels, temperature variations from -30°C to +50°C, and severe shock loading require specialized gearbox designs. These incorporate enhanced protection features. Units designed for these environments include advanced sealing systems. These feature triple-lip designs and pressurized housings. The housings maintain positive internal pressure. This actively excludes contaminants rather than simply blocking their entry.
An underground coal mining operation in Appalachia deployed heavy-duty shaft mounted gearbox units. These were rated for continuous duty in 100% humidity environments. Coal dust concentrations exceeded 500 mg/m³. Custom specifications included stainless steel hardware for corrosion resistance. Food-grade synthetic lubricants met mining safety regulations. Integrated vibration sensors provided predictive maintenance data to the facility’s condition monitoring system. Over a 3-year operational period, these units achieved 97.8% availability rates. They reduced lubricant consumption by 40% compared to previous standard designs. Those required more frequent oil changes due to contamination-related degradation.
Engineering Selection Criteria and Specification Process
Load Analysis and Power Requirement Calculations
Proper sizing begins with accurate determination of required output torque. This is calculated from conveyor belt tension, drum diameter, and desired belt speed. The fundamental relationship follows the equation: Torque (lb-ft) = (Belt Tension × Drum Radius) / Efficiency Factor. Engineers typically apply service factors between 1.25 and 2.0. These account for starting loads, material surges, and environmental conditions. These increase actual loads beyond steady-state calculations.
For example, consider a conveyor moving aggregate material at 300 feet per minute. It has effective belt tension of 8,000 lbs. This requires approximately 22 HP at a drive shaft equipped with a 28-inch diameter drum. The drum rotates at 125 RPM. This translates to output torque near 6,500 lb-ft. Thermal analysis must verify that continuous operation at rated load maintains gearbox temperatures within manufacturer specifications. These typically reach 90-100°C maximum for synthetic lubricants. Inadequate thermal capacity results in accelerated lubricant degradation and potential gear scoring. Excessive oversizing increases initial costs unnecessarily. It doesn’t provide proportional benefits.
Physical Installation Requirements and Space Constraints
Physical space limitations often dictate mounting orientation and gearbox type selection during the engineering phase. Parallel shaft units require clearance for input shaft coupling and motor mounting. This typically adds 18-30 inches to overall assembly length. Right-angle configurations reduce axial space requirements. However, they may increase width dimensions by 12-20 inches. This depends on reduction ratio and frame size. Detailed dimensional drawings enable virtual installation verification. Three-dimensional CAD systems prevent costly field modifications discovered during actual installation.
Shaft compatibility represents another critical specification parameter. It requires precise verification. Gearbox bore dimensions must match driven shaft diameter within specified tolerances. These typically measure +0.000/-0.002 inches for proper bushing engagement. This ensures torque transmission without slippage. Standard bore sizes range from 1.5 inches to 8 inches diameter. Custom boring is available for non-standard applications requiring intermediate sizes. Keyway dimensions must align with driven shaft configurations. These follow standardized dimensioning practices. This ensures proper angular alignment and torque transmission.
Environmental Factors and Protection Level Requirements
Operating environment dramatically influences gearbox specification decisions and expected service life projections. Indoor climate-controlled installations require minimal special provisions beyond standard industrial construction. Outdoor applications demand weatherproof sealing and corrosion-resistant coatings. They may also require heated lubricant systems for cold climates. The Ingress Protection rating system quantifies environmental protection levels. IP65 or IP66 ratings are standard for most industrial applications. These provide dust-tight construction and protection against water jets from any direction.
Extreme temperature environments require specialized consideration during specification. Applications operating below 0°C ambient may require synthetic lubricants. These have pour points to -40°C to maintain proper fluidity during startup. High-temperature environments above 50°C ambient necessitate forced cooling provisions or oversized thermal capacity margins. A cement manufacturing plant in the southwestern United States faced challenging conditions. It operated in 45°C ambient temperatures. The facility specified gearboxes with 150% thermal capacity margins over calculated requirements. It incorporated forced-air cooling fans. These reduced steady-state operating temperatures by 18°C. They extended lubricant change intervals by 60%. This significantly reduced annual maintenance costs despite higher initial equipment investment.
Cost Considerations and Economic Analysis
Initial Investment and Installation Expenses
Shaft mounted gearbox pricing varies significantly based on physical size, reduction ratio, construction quality, and manufacturer reputation. Entry-level industrial units rated for 5-10 HP applications typically range from $1,200-$3,500. Heavy-duty models for 50-100 HP operations cost between $8,000-$22,000 depending on specifications. Premium manufacturers offering extended warranties and enhanced features command 25-40% price premiums. However, they often justify higher costs through reduced maintenance requirements. Service life expectancy can reach 20+ years under proper operating conditions.
Installation expenses depend on application complexity and existing site conditions. Simple conveyor retrofits with existing torque arm mounting provisions typically require 4-8 labor hours for qualified millwrights. This totals $300-$1,000 in installation labor at prevailing industrial maintenance rates. New installations may increase costs. Custom fabrication of torque arm supports, structural reinforcement, or shaft modifications can push installation expenses to $2,000-$5,000 or more. However, compared to foot-mounted alternatives, shaft mounted gearbox configurations consistently deliver benefits. Foot-mounted options require precision alignment procedures and grouted base plates. The shaft-mounted approach achieves 30-50% installation cost savings.
Lifecycle Operating Costs and Total Ownership Analysis
Total cost of ownership analysis reveals important findings. Initial purchase price represents only 15-25% of lifecycle expenses. This spans typical 15-20 year service life expectancy. Energy consumption constitutes the largest operational cost component in most applications. A 50 HP gearbox operating 6,000 hours annually at 96% efficiency consumes approximately 270,000 kWh. This represents annual energy costs of $21,600-$32,400. Industrial electricity rates average $0.08-$0.12 per kWh across different regions.
Maintenance expenses typically average $400-$800 annually. This covers lubricant changes, seal replacements, and periodic inspections. These figures apply to properly specified units operating under normal conditions. Premium synthetic lubricants cost $25-$45 per gallon. They provide superior performance and extended drain intervals compared to mineral oils. This reduces total lubricant costs by 20-30% despite higher per-unit prices. A comparative analysis conducted at a large mining corporation found significant differences. Units from premium manufacturers demonstrated 34% lower total maintenance costs. This covered 10-year evaluation periods compared to economy alternatives. The savings came primarily through reduced unplanned downtime incidents and longer component replacement intervals.
Maintenance Strategies for Extended Service Life
Lubrication Management and Condition Monitoring
Proper lubrication represents the single most critical factor in achieving design service life expectations. Initial oil fill procedures should follow manufacturer specifications precisely, including break-in oil changes after first 100-200 operating hours to remove metallic particles generated during initial gear meshing and bearing run-in. Routine oil analysis programs detect early wear indicators before they progress to component damage, with quarterly sampling intervals recommended for critical production equipment.
Laboratory analysis examines samples for key parameters including viscosity, total acid number indicating oxidation levels, particle count, and ferrous debris content indicating gear or bearing wear. Trending analysis of these parameters identifies accelerating wear patterns long before catastrophic failures occur. A chemical processing plant implementing comprehensive oil analysis across 89 shaft-mounted gearboxes detected 14 units showing elevated wear indicators during a single analysis cycle. This early detection enabled planned replacements during scheduled maintenance windows, preventing 11 potential in-service failures and avoiding estimated production losses exceeding $380,000 plus emergency repair costs totaling $127,000.
Inspection Procedures and Predictive Maintenance Technologies
Regular visual inspections should occur weekly during routine equipment rounds, systematically checking for oil leaks, unusual noise or vibration patterns, excessive temperature rise, and torque arm condition. Monthly detailed inspections utilizing infrared thermography identify developing hot spots indicating bearing issues or insufficient lubrication, typically manifesting as temperature differentials exceeding 15-20°C compared to similar equipment operating under identical conditions.
Ultrasonic analysis detects bearing defects, gear meshing problems, and lubrication deficiencies weeks or months before visible symptoms appear or temperatures rise significantly. Vibration analysis provides the most comprehensive condition monitoring approach, with baseline measurements establishing normal operational signatures immediately after installation. Increases in specific frequency bands correlate directly with particular failure modes: bearing outer race defects generate frequencies at approximately 0.4 times shaft rotational speed, while gear mesh frequencies identify tooth wear progression or developing misalignment conditions. A paper manufacturing facility utilizing quarterly vibration surveys across 127 gearboxes achieved 45% reduction in unplanned downtime over a 3-year period, with predictive indicators providing 4-8 week advance warning of developing problems requiring attention.
Price Disclaimer: All pricing information represents approximate market rates as of 2025 and varies significantly based on detailed specifications, order quantities, supplier selection, geographic location, and current market conditions. Consult manufacturers or authorized distributors for current quotations specific to your precise application requirements.
Technical Disclaimer: This guide provides general technical information for educational purposes. Specific applications require detailed engineering analysis considering all operational parameters, environmental conditions, regulatory requirements, and safety factors. Always consult qualified professional engineers and follow all applicable industry codes, safety standards, and manufacturer recommendations for proper equipment selection, installation procedures, and maintenance practices.
Strategic Implementation for Optimal Performance
Shaft mounted gearbox systems deliver proven performance advantages in conveyor systems, mixing equipment, and material handling applications where installation efficiency, space utilization, and operational reliability drive equipment selection decisions. Understanding technical characteristics, proper sizing methodology, and preventive maintenance requirements enables engineers and maintenance professionals to specify optimal solutions that minimize total cost of ownership while maximizing equipment uptime and production continuity.
Modern developments continue advancing shaft mounted gearbox technology with integrated condition monitoring sensors, IoT connectivity for remote diagnostics, and advanced materials extending capabilities into increasingly demanding applications. Organizations implementing these systems benefit from simplified installation procedures, reduced maintenance requirements, and improved operational reliability compared to traditional power transmission alternatives.
