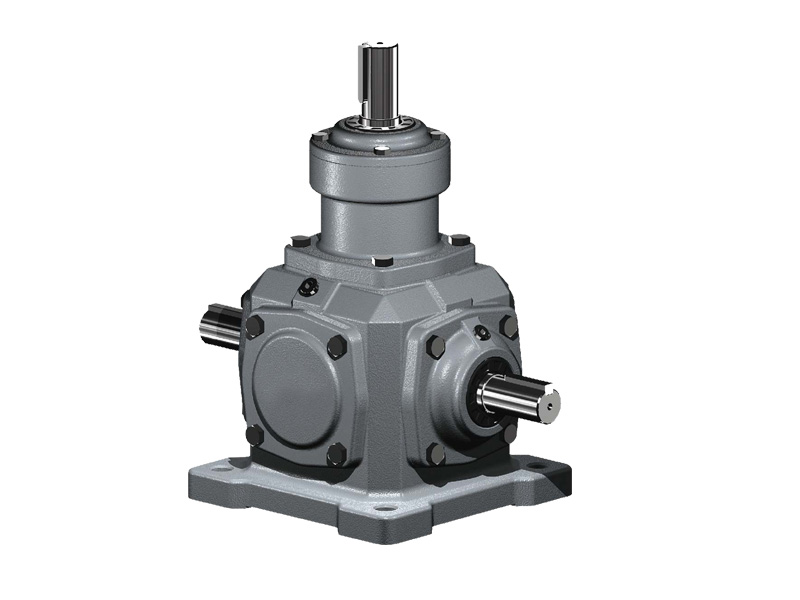

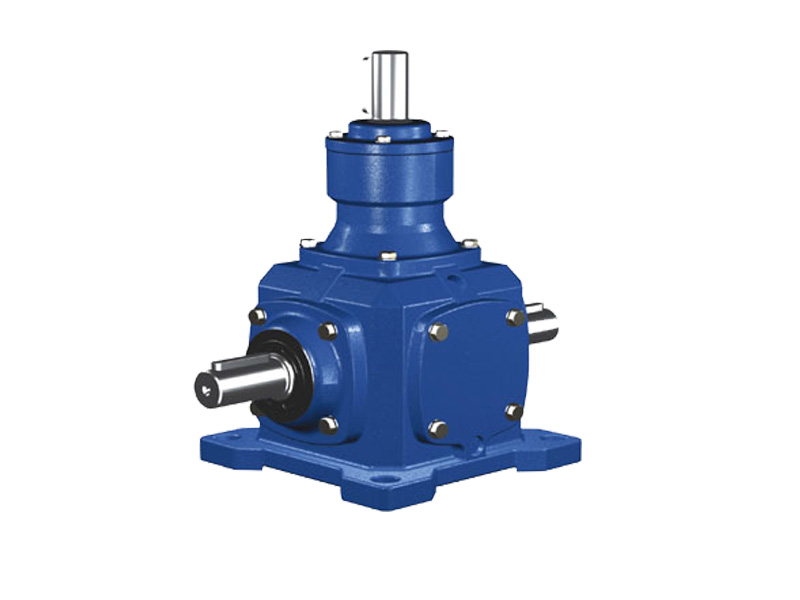

T Series Spiral Bevel Gear Unit – 0.014-335kW, 1-3 Ratio

T Series Spiral Bevel Gear Unit – 0.014-335kW, 1-3 Ratio



The T Series Spiral Bevel Gear Unit, also known as a right angle steering gearbox or cross steering gearbox, delivers robust power transmission from 0.014 to 335kW with gear ratios of 1:1 to 3:1. Featuring hardened spiral bevel gears and a sturdy cast iron housing, it ensures reliable, low-noise performance across diverse applications. With flexible mounting and shaft options, this gear unit is ideal for high-load, precision-driven systems. DONGQI offers customized T Series solutions for optimal integration. Explore our right angle gear unit options for tailored configurations.

Applications of T Series Right Angle Steering Gearbox

The T Series excels in industries requiring precise, high-torque transmission, including:

• Side-by-Side Transmission Devices – Ensures synchronized power delivery.
• Stereo Garages – Supports smooth lifting and positioning.
• Lifting Devices – Handles heavy loads with reliable torque.
• Playground Equipment – Provides safe, quiet operation.
• Packaging Machinery – Enables efficient, low-vibration performance.

This cross steering gearbox is perfect for applications needing compact, high-capacity solutions.

Advantages of T Series Spiral Bevel Gear Unit

Key benefits include:

• Robust Construction – Gray cast iron housing and hardened spiral bevel gears ensure durability.
• High Load Capacity – Up to 3677 Nm for demanding tasks.
• Low Noise and Vibration – Precision gears enable smooth, quiet operation.
• Flexible Configurations – Multiple frame sizes, shaft options, and ratios (1:1 to 3:1).
• Bidirectional Rotation – Supports clockwise and counterclockwise operation.
• Versatile Mounting – Foot or flange mounting for easy integration.
• Reliable Performance – Strong bearings ensure optimized, long-lasting operation.

Discover more about our spiral bevel gearbox solutions for enhanced efficiency.

Technical Parameters of T Series Cross Steering Gearbox

Model	Input Power (kW)	Ratio	Max. Torque (Nm)	Weight (kg)	Output Shaft Dia. (k6)
T2	0.014~1.79	1~2	11	2	Φ15
T4	0.026~4.94	1~2	31	10	Φ19
T6	0.037~14.9	1~3	94	21	Φ25
T7	0.042~22	1~3	139	32	Φ32
T8	0.064~45.6	1~3	199	49	Φ40
T10	0.11~65.3	1~3	288	78	Φ45
T12	0.188~96	1~3	607	124	Φ50
T16	0.40~163	1~3	1073	188	Φ60
T20	0.69~234	1~3	1943	297	Φ72
T25	1.4~335	1~3	3677	488	Φ85

*Ratios: 1:1, 1.5:1, 2:1, 2.5:1, 3:1

Main Components



Housing

• Material: Gray cast iron for superior strength and vibration resistance.
• Design: Compact and sturdy for reliable performance in harsh conditions.

Gear Set

• Type: Hardened spiral bevel gear pair for high efficiency and torque.
• Feature: Precision-meshed for low noise and smooth operation at low or high speeds.

Input Configurations

• Single keyed input shaft or double keyed input shafts for flexible motor integration.

Output Configurations

• Single keyed output shaft or double keyed output shafts for versatile applications.

Models

• T2~T25: Wide range of frame sizes for diverse power and torque needs.
• Configurable with single or double input/output shafts and various gear ratios.

Safety Features



The T Series spiral bevel gear unit ensures safe operation through:

• Durable Housing: Gray cast iron withstands high stress and wear.
• Strong Bearings: Support reliable, vibration-free performance.
• Precision Gears: Minimize operational instability for safe power transmission.
• Bidirectional Operation: Stable in clockwise or counterclockwise rotation.

Customization Options

• Power Range: 0.014-335kW for varied industrial needs.
• Gear Ratios: 1:1, 1.5:1, 2:1, 2.5:1, 3:1 for precise torque control.
• Mounting Types: Foot or flange mounting for flexible installation.
• Shaft Configurations: Single or double keyed input/output shafts.

Installation and Lubrication

• Mounting Options: Foot mounting or flange mounting for easy setup.
• Lubrication: Grease lubrication for low maintenance and efficient operation.
• Cooling: Natural cooling for effective heat dissipation.

Maintenance Best Practices

• Lubrication Checks: Inspect grease levels every 6 months.
• Gear Inspection: Annual checks for wear on spiral bevel gears.
• Bearing Maintenance: Ensure bearings are free of debris and properly lubricated.
• Clean Environment: Prevent dust or contaminants from affecting performance.

Economic Benefits

• Cost-Effective Design: Modular components reduce installation costs.
• Energy Efficiency: High-efficiency gears lower power consumption.
• Long Service Life: Durable cast iron and gears minimize replacement needs.
• Low Maintenance: Grease lubrication reduces upkeep expenses.

Why Choose the T Series Spiral Bevel Gear Unit?

The T Series spiral bevel gear unit from DONGQI offers reliable, high-torque performance for right angle power transmission. With a 0.014-335kW range, 1-3 ratio, and low-noise operation, it’s ideal for stereo garages, lifting devices, and packaging machinery. Its modular design and robust construction ensure cost-effective, long-lasting solutions.

For more information, technical support, or a professional quote, contact us via WhatsApp/Skype: +8615993097180, email: [email protected], or consultation hotline: +8615993097180.
