YE2 Series IE2 AC Motor – 0.75-22kW, 1000-3000 RPM

YE2 Series IE2 AC Motor – 0.75-22kW, 1000-3000 RPM

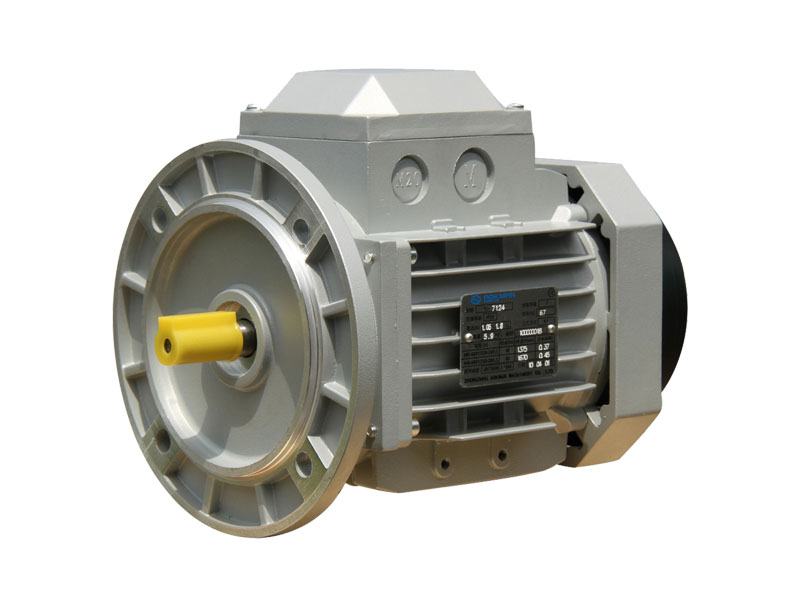

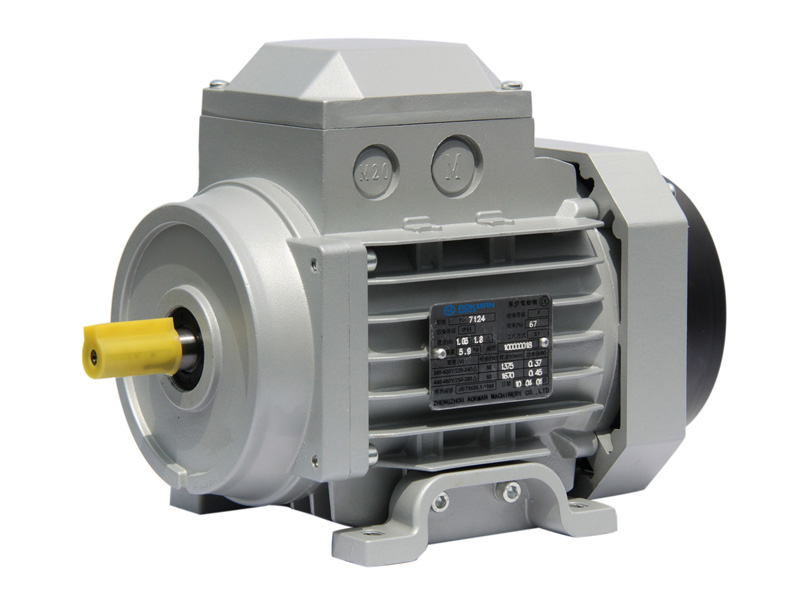

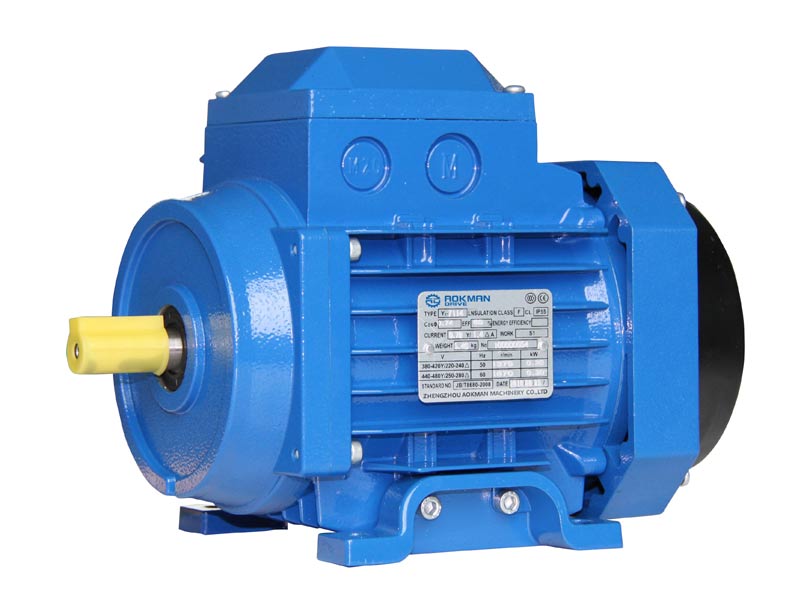

The DongQi® YE2 Series 3 Phase AC Asynchronous Motors, designed to IEC standards with IE2 energy efficiency, feature a cast aluminum housing with a square ABB Motor design and detachable mounting feet. Engineered for dustproof and waterproof performance, these induction motors offer low noise, low vibration, and high energy efficiency, ensuring a long service life. With power outputs from 0.75kW to 22kW and speeds of 1000-3000 RPM, the YE2 Series is ideal for demanding industrial applications requiring reliable, eco-friendly motor solutions.

Applications of YE2 Series IE2 AC Motor

The YE2 Series excels in a wide range of industrial applications, including:

• Pumps and Fans – Efficiently drives fluid and air systems in HVAC and water treatment.
• Conveyors – Reliable power for material handling in manufacturing and logistics.
• Compressors – High-efficiency operation for air and gas compression systems.
• Industrial Machinery – Supports crushers, mixers, and equipment in mining and construction.

This IE2 3-phase AC motor is perfect for energy-efficient, high-performance industrial tasks.

Advantages of YE2 Series IE2 AC Motor

Key benefits include:

• IE2 Energy Efficiency – High-efficiency design reduces energy consumption and operating costs.
• Low Noise and Vibration – Precision components ensure smooth, quiet operation.
• Dustproof and Waterproof – IP54/IP55/IP56 ratings for harsh industrial environments.
• Long Service Life – Durable aluminum housing and premium bearings enhance reliability.
• Customizable Mounting – Detachable feet with multiple options (B3, B5, B14, B34, B35).
• High-Quality Components – C&U, NSK, or SKF bearings and silicon steel cores for superior performance.
• Wide Power Range – 0.75-22kW (1-30HP) for versatile applications.

Technical Parameters of YE2 Series IE2 AC Motor



Parameter	Specification
Power	0.75 kW~22 kW (1HP~30HP)
Output Speed	3000 RPM, 1500 RPM, 1000 RPM
Poles	2P, 4P, 6P
Voltage	380V
Frequency	50Hz/60Hz
Frame Sizes	H80~H180
Shaft Diameter	Φ19~Φ48
Efficiency Class	IE2
Ingress Protection	IP54, IP55, IP56
Insulation Level	F
Duty	Continuous duty (S1)
Cooling	IC411
Mounting Options	IM B3, B5, B14, B34, B35

Main Components

Housing

• Material: Die-casting aluminum for lightweight durability and corrosion resistance.
• Design: Square ABB Motor design with detachable feet for flexible mounting.

Shaft

• Material: 40Cr steel for high strength and wear resistance.
• Feature: Precision-machined for reliable power transmission.

Magnet Wires

• Type: QZ-2/155, QZ-2/180 for superior thermal and electrical performance.
• Feature: Ensures efficient operation under continuous duty.

Stator & Rotor Core

• Material: Silicon steel sheets (DW470, DW600) for enhanced magnetic efficiency.
• Feature: Minimizes energy loss and boosts motor performance.

Bearings

• Brands: C&U, NSK, or SKF for high reliability and low friction.
• Feature: Supports smooth operation and extended motor lifespan.

Models and Variants

• YE2 Series: Frame sizes H80~H180, power 0.75-22kW, poles 2P, 4P, 6P, speeds 1000-3000 RPM.
• Mounting Variants: IM B3, B5, B14, B34, B35 for versatile installation options.

Safety Features

The YE2 Series IE2 AC Motor ensures safe operation through:

• Dustproof and Waterproof Housing – IP54/IP55/IP56 ratings protect against environmental hazards.
• High Insulation Level – Class F insulation for thermal stability and safety.
• Premium Bearings – C&U, NSK, or SKF bearings reduce wear and enhance reliability.
• Continuous Duty (S1) – Designed for safe, non-stop operation in demanding conditions.

Customization Options

• Power Range: 0.75-22kW (1-30HP) for diverse industrial needs.
• Speed Options: 1000, 1500, 3000 RPM (2, 4, 6 poles) for precise control.
• Frame Sizes: H80~H180 for compact or larger setups.
• Mounting Types: B3, B5, B14, B34, B35 for flexible installation.
• Shaft Diameter: Φ19~Φ48 for compatibility with various systems.

Installation and Maintenance

• Mounting Types: IM B3, B5, B14, B34, B35 for versatile setups.
• Maintenance: Inspect bearings and magnet wires annually; clean housing to prevent dust buildup.
• Cooling: IC411 self-ventilation for efficient heat dissipation.

Economic Benefits

• IE2 Energy Efficiency – Reduces power consumption for lower operating costs.
• Long Service Life – Durable aluminum housing and quality components minimize replacements.
• Low Maintenance – Reliable bearings and robust design reduce upkeep expenses.
• Cost-Effective Installation – Detachable feet and multiple mounting options simplify setup.

Why Choose the YE2 Series IE2 AC Motor?

The YE2 Series IE2 AC Motor from DongQi delivers high-efficiency, low-noise performance for industrial applications. With a 0.75-22kW power range, 1000-3000 RPM speeds, and IE2 energy efficiency, it’s ideal for pumps, conveyors, and compressors. Its dustproof, waterproof design ensures reliable, eco-friendly operation.
